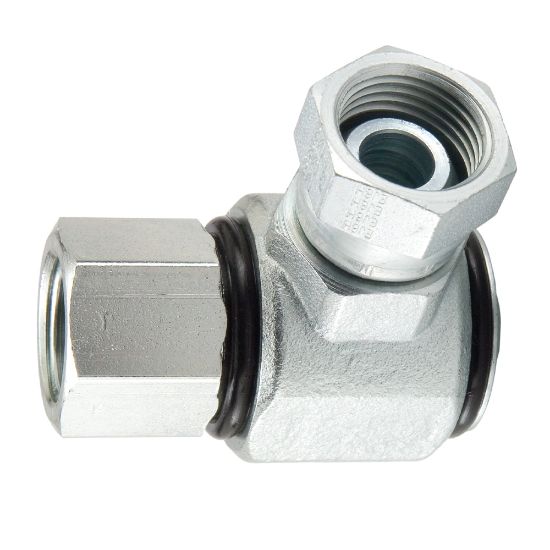

Picture of Pressure Balanced, Hydraulic Swivels - S Series - S2207-16-16

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pressure Balanced, Hydraulic Swivels - S Series - S2207-16-16

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.
Availability:
Backordered
SKU S2207-16-16
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Shaft Connection Thread Size (inch)1 - 11 1/2 NPTFSeal MaterialNitrile
Shaft Connection StyleFemale NPTFHousing Connection StyleFemale NPSM Pipe Swivel
PlatingZinc with clear trivalent chromateHousing Connection Thread Size (inch)1 - 11 1/2 NPSM
DivisionQuick Coupling DivisionMaximum Operating Speed10 RPM
Configuration90 degreeMaximum Operating Pressure2600 psi
Maximum Operating Temperature250 °FMinimum Operating Temperature-40 °F
Body MaterialSteel
