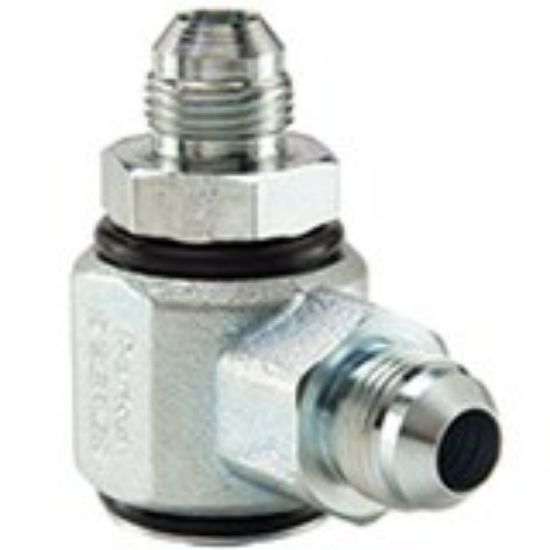

Picture of Pressure Balanced, Hydraulic Swivels - S Series - S2303-8-8

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pressure Balanced, Hydraulic Swivels - S Series - S2303-8-8

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.
Availability:
Backordered
SKU S2303-8-8
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Shaft Connection Thread Size (inch)3/4 - 16 UNFShaft Connection StyleMale JIC 37 degree
Housing Connection Thread Size (inch)3/4 - 16 UNFPlatingZinc with clear trivalent chromate
Housing Connection StyleMale JIC 37 degreeSeal MaterialNitrile
Maximum Operating Speed10 RPMMaximum Operating Pressure3000 psi
Configuration90 degreeMaximum Operating Temperature250 °F
Body MaterialSteelMinimum Operating Temperature-40 °F
DivisionQuick Coupling Division
