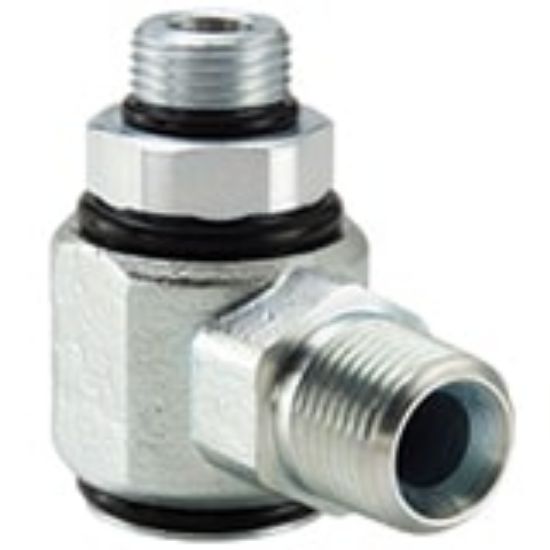

Picture of Pressure Balanced, Hydraulic Swivels - S Series - S2501-6-6

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pressure Balanced, Hydraulic Swivels - S Series - S2501-6-6

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.
Availability:
Backordered
SKU S2501-6-6
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Housing Connection Thread Size (inch)3/8 - 18 NPTFHousing Connection StyleMale NPTF
Shaft Connection StyleMale SAE O-ring Straight ThreadSeal MaterialNitrile
Shaft Connection Thread Size (inch)9/16 - 18 UNFPlatingZinc with clear trivalent chromate
Maximum Operating Temperature250 °FMinimum Operating Temperature-40 °F
Body MaterialSteelDivisionQuick Coupling Division
Maximum Operating Speed10 RPMMaximum Operating Pressure3000 psi
Configuration90 degree
