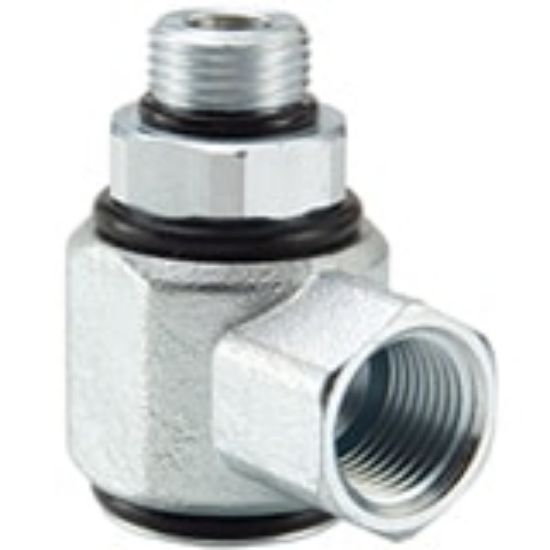

Picture of Pressure Balanced, Hydraulic Swivels - S Series - S2510-12-12

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pressure Balanced, Hydraulic Swivels - S Series - S2510-12-12

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.
Availability:
Backordered
SKU S2510-12-12
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Shaft Connection Thread Size (inch)1 1/16 - 12 UNPlatingZinc with clear trivalent chromate
Housing Connection StyleFemale SAE Straight ThreadHousing Connection Thread Size (inch)1 1/16 - 12 UN
Shaft Connection StyleMale SAE O-ring Straight ThreadSeal MaterialNitrile
Maximum Operating Temperature250Minimum Operating Temperature-40
DivisionQuick Coupling DivisionMaximum Operating Pressure3000
Configuration90 degreeMaximum Operating Speed10
Body MaterialSteel
