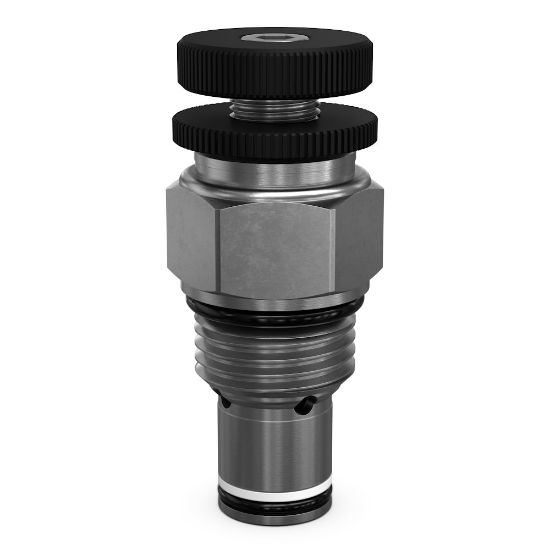

Pressure Compensated Flow Control Valves - FA101D

Name: Pressure Compensated Flow Control Valves - FA101D
SKU: FA101D

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Availability:

Backordered

SKU FA101D

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Configuration	Reverse Check
Maximum Flow Rate	5.5 GAL/MIN, 20.6 L/MIN	Adjustment Mechanism	Detented Knob
Flow Rate Display Range	0.2-5.5 GAL/MIN, 0.75-20.6 L/MIN	Standard Flow Rate Setting	N/A
Seal Material	Nitrile	Connection Size	n/a
Connection Type	n/a	Body Material	n/a
Minimum Operating Temperature	-30	Division	Hydraulic Valve Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Weight	0.5	Maximum Operating Pressure	3000
Function	Flow Control	Cavity Size	C10-2
Maximum Inlet Pressure Rating	3000	Standard Flow Rate Setting	n/a
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Flow Rate Accuracy	N/A
Operating Temperature	-30 to +250	Maximum Operating Temperature	+250
Flow Rate	5.5	Maximum Flow Rate	5.5
Configuration	Reverse Check	Actuation Type	Pressure Compensated
Operation Type	Manually operated	Installation Torque	16 (Aluminum), 48 (Steel)
Adjustment Mechanism	Detented Knob	Flow Rate Display Range	0.2-5.5 gal/min This is the regulated flow range (min - max)
