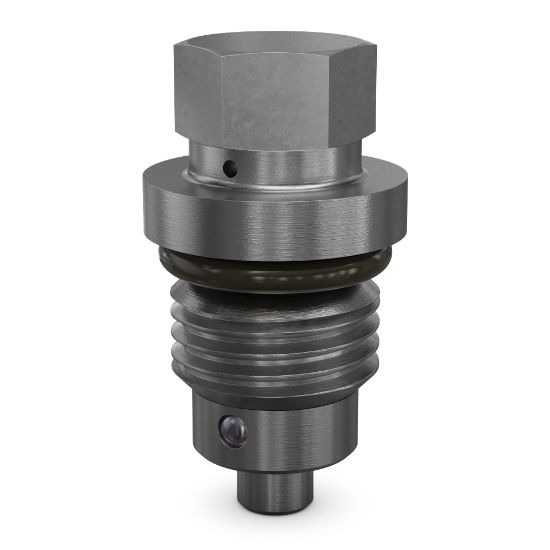

Pressure Compensated Flow Control Valves - FR032010

Name: Pressure Compensated Flow Control Valves - FR032010
SKU: FR032010

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Availability:

Backordered

SKU FR032010

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Adjustment Mechanism	Fixed
Flow Rate Display Range	N/A	Configuration	Insert
Maximum Flow Rate	0.3 GAL/MIN, 1.13 L/MIN	Standard Flow Rate Setting	0.1 GAL/MIN, 0.38 L/MIN
Connection Size	n/a	Connection Type	n/a
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	345 bar	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15 °F	Function	Flow Control
Operation Type	Automatic	Adjustment Mechanism	Tamper Resistant
Maximum Inlet Pressure Rating	5000 psi	Configuration	Insert
Maximum Operating Temperature	+204 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-15 to +400 °F	Flow Rate	0.3 Gal/min
Actuation Type	Pressure Compensated	Weight	0.045 lb
Cavity Size	ES10436	Maximum Flow Rate	1.13 L/min
Flow Rate Accuracy	15%	Installation Torque	13 lb-ft
Flow Rate Display Range	N/A Gal/min	Standard Flow Rate Setting	0.1 Gal/min
