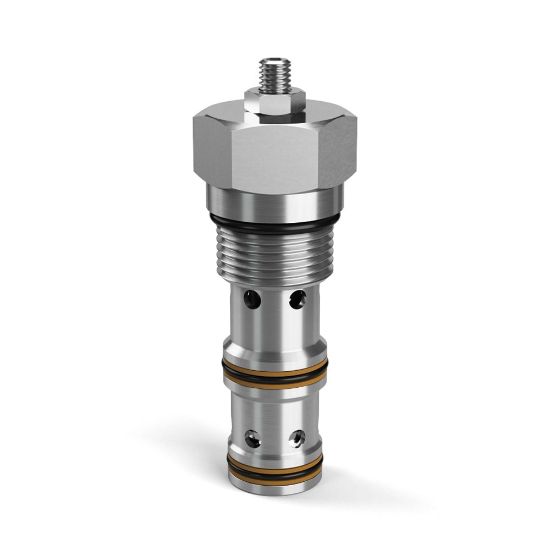

Pressure Compensated Priority Flow Control Valves - J1A125TN

Name: Pressure Compensated Priority Flow Control Valves - J1A125TN
SKU: J1A125TN

Pressure compensated priority flow control valves maintain constant flow regardless of changes to inlet pressure for flows up to 90 lpm (24 gpm) and pressures up to 420 bar (6000 psi); excess flow is diverted once the priority flow requirement is met.

Availability:

Backordered

SKU J1A125TN

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Adjustment Mechanism	Tamper Resistant
Flow Rate Display Range	N/A	Maximum Flow Rate	40 GAL/MIN,150 L/MIN
Standard Flow Rate Setting	6.6 GAL/MIN@11.9 GAL/MIN Inlet, 25 L/MIN@45 L/MIN Inlet	Seal Material	Nitrile
Connection Size	n/a	Connection Type	n/a
Body Material	n/a	Maximum Operating Pressure	5000 psi
Division	Hydraulic Cartridge Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-34 °C	Maximum Flow Rate	40 Gal/min
Division	Mobile Hydraulic Systems Division Europe	Adjustment Mechanism	Tamper Resistant
Maximum Inlet Pressure Rating	5000 psi	Weight	0.45 kg
Flow Rate	40 Gal/min	Installation Torque	85 Nm
Maximum Operating Temperature	+121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Flow Rate Accuracy	N/A	Operating Temperature	-30 to +250 °F
Actuation Type	Pressure Compensated	Operation Type	Manually operated
Configuration	Priority Flow	Function	Flow Regulator Valve
Flow Rate Display Range	N/A L/min	Cavity Size	3A
Maximum Priority Flow	N/A L/min	Standard Flow Rate Setting	6.6 GAL/MIN@11.9 GAL/MIN Inlet Gal/min
Maximum Regulated Flow Rate	24 Gal/min
