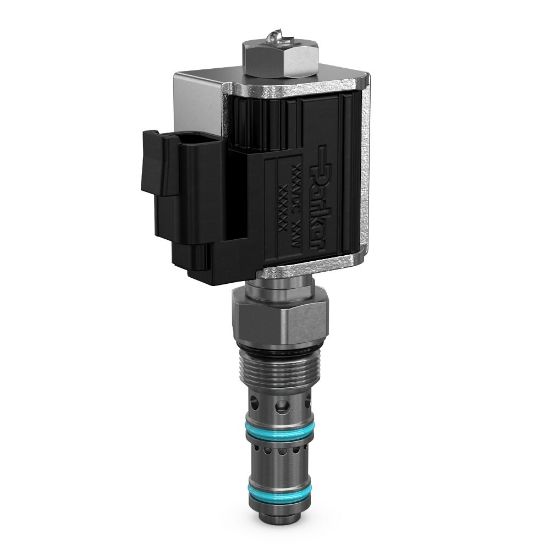

Pressure Compensated Proportional Poppet Valves - FAPC101CV

Name: Pressure Compensated Proportional Poppet Valves - FAPC101CV
SKU: FAPC101CV

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU FAPC101CV

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Configuration	Normally Closed
Maximum Flow Rate	10 GAL/MIN, 38 L/MIN	Actuation Type	Electrical
Maximum Operating Pressure	3000 psi	Connection Size	n/a
Connection Type	n/a	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-26 °C	Weight	0.52 lb
Flow Rate	10 Gal/min	Operation Type	Solenoid Operated
Installation Torque	34 Nm	Coil Nut Tightening Torque	3 lb-ft
Maximum Flow Rate	38 L/min	Configuration	Normally Closed
Maximum Operating Temperature	+400 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Frequency	100-400 Hz	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-15 to +400 °F
Maximum Inlet Pressure Rating	210 bar	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Function	Proportional Pressure Compensated Flow Control/Regulator	Cavity Size	3X
Coil Type	5/8" Super Coil Low Watt (CAS)	Hysteresis	< 10%
Flow Direction	Top to Side (3 - 2)	Power Consumption	18 W
Minimum Pressure Differential	34 bar	Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC A
