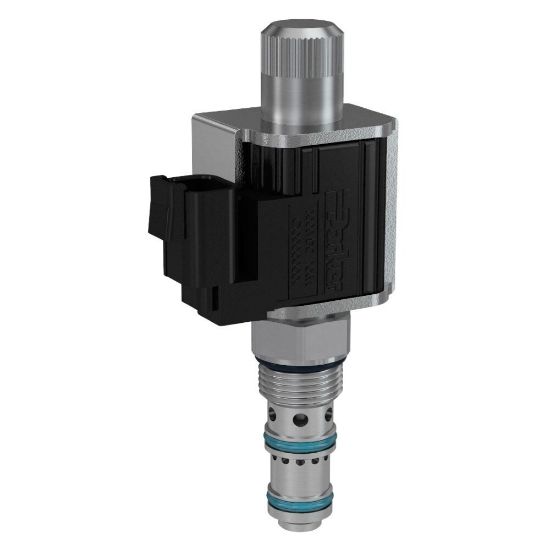

Pressure Compensated Proportional Poppet Valves - FAPC101NV

Name: Pressure Compensated Proportional Poppet Valves - FAPC101NV
SKU: FAPC101NV

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU FAPC101NV

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Configuration	Normally Open
Maximum Flow Rate	10 GAL/MIN, 38 L/MIN	Actuation Type	Electrical
Flow Rate	10	Connection Size	n/a
Connection Type	n/a	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Valve Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15	Maximum Operating Pressure	3000
Weight	0.52	Operation Type	Solenoid Operated
Coil Nut Tightening Torque	Finger Tight	Maximum Flow Rate	10
Maximum Inlet Pressure Rating	3000	Configuration	Normally Open
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-15 to +400
Frequency	100-400	Maximum Operating Temperature	+400
Leak Rate	5 @ 3000 PSI (210 BAR)	Installation Torque	25
Function	Proportional Pressure Compensated Flow Control/Regulator	Cavity Size	3X
Coil Type	5/8" Super Coil Low Watt (CAS)	Hysteresis	< 10%
Flow Direction	Top to Side (3 - 2)	Power Consumption	18
Minimum Pressure Differential	500	Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC
