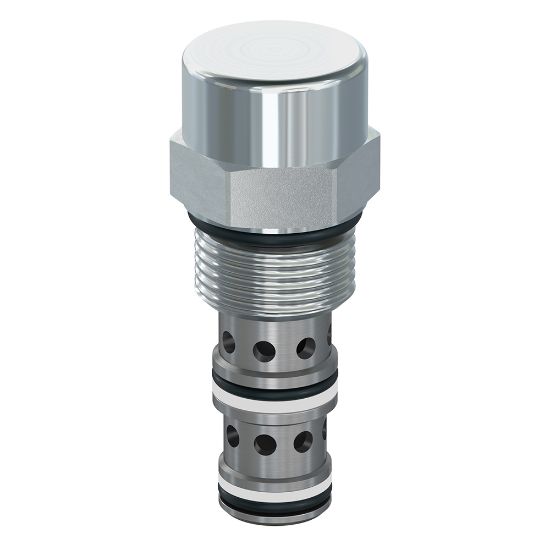

Pressure Compensators/Control Elements - FCR101F

Name: Pressure Compensators/Control Elements - FCR101F
SKU: FCR101F

REGIONAL - Parker’s pressure compensator valves provide constant flow regardless of upstream or downstream pressure changes via a fixed or adjustable orifice. These valves can handle flows up to 150 lpm (40 gpm) and pressures up to 245 bar (3500 psi).

Availability:

Backordered

SKU FCR101F

POR

Qty:

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	10 GAL/MIN, 38 L/MIN	Pressure Differential	160 PSI, 11 BAR
Seal Material	Nitrile	Connection Type	n/a
Minimum Operating Temperature	-34 °C	Configuration	Used with external orifice (fixed or variable)
Installation Torque	22 Nm	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Pressure Differential	160 psi	Valve Material	All parts steel. All operating parts hardened steel
Flow Rate	38 L/min	Seal Material	Nitrile
Operation Type	Pressure sensing	Division	Hydraulic Cartridge Systems Division
Weight	0.3 lb	Maximum Operating Pressure	3500 psi
Body Material	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Inlet Pressure Rating	3500 psi	Operating Temperature	-34 to +121 °C
Adjustment Mechanism	Fixed	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Flow Rate Accuracy	10%	Cavity Size	C10-3
Division	Hydraulic Systems Division	Connection Size	n/a
Function	Pressure Compensating Valve	Maximum Operating Temperature	245 bar
Maximum Flow Rate	38 L/min	Actuation Type	Restrictive type
