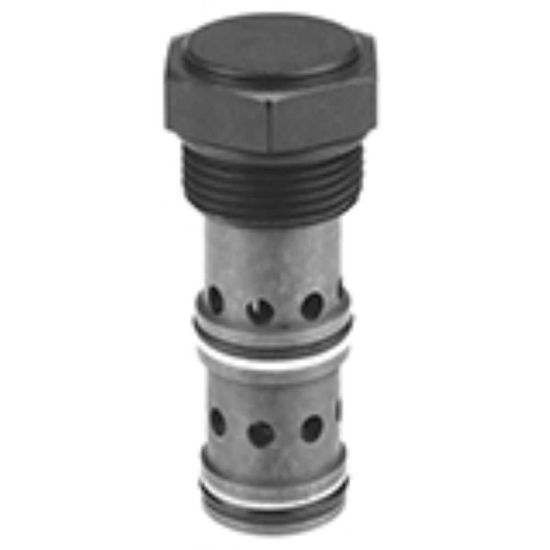

Pressure Compensators/Control Elements - FCR161F

Name: Pressure Compensators/Control Elements - FCR161F
SKU: FCR161F

REGIONAL - Parker’s pressure compensator valves provide constant flow regardless of upstream or downstream pressure changes via a fixed or adjustable orifice. These valves can handle flows up to 150 lpm (40 gpm) and pressures up to 245 bar (3500 psi).

Availability:

Backordered

SKU FCR161F

POR

Qty:

Products specifications

Attribute name	Attribute value
Pressure Differential	160 PSI, 11 BAR	Seal Material	Nitrile
Maximum Flow Rate	40 GAL/MIN, 150 L/MIN	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Pressure	3500 psi	Operating Temperature	-30 to +250 °F
Body Material	n/a	Cavity Size	C16-3
Installation Torque	40 lb-ft	Weight	0.34 kg
Adjustment Mechanism	Fixed	Connection Size	n/a
Division	Hydraulic Systems Division	Function	Pressure Compensating Valve
Maximum Operating Temperature	245 bar	Actuation Type	Restrictive type
Configuration	Used with external orifice (fixed or variable)	Connection Type	n/a
Pressure Differential	160 psi	Maximum Inlet Pressure Rating	245 bar
Flow Rate Accuracy	10%	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Nitrile	Maximum Flow Rate	40 Gal/min
Minimum Operating Temperature	-30 °F	Division	Hydraulic Cartridge Systems Division
Operation Type	Pressure sensing	Flow Rate	40 Gal/min
