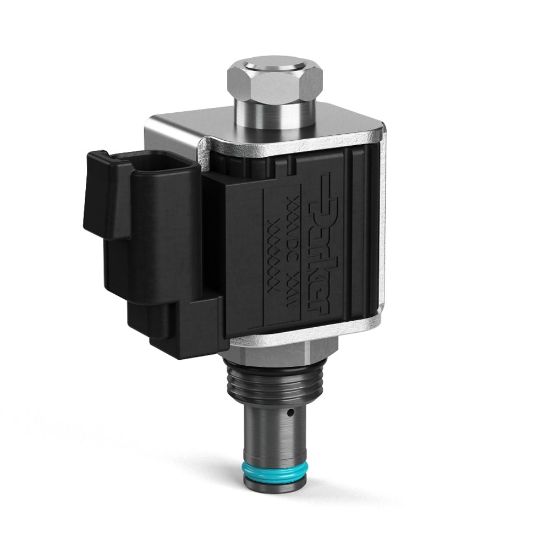

Pressure Relieving Proportional Valve - AP02B2YP07CN

Name: Pressure Relieving Proportional Valve - AP02B2YP07CN
SKU: AP02B2YP07CN

Parker’s selection of proportional pressure relieving valves are for applications that require dynamic relieving and valves that are capable of flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi).

Availability:

Backordered

SKU AP02B2YP07CN

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Flow Rate	1.4 GAL/MIN, 5.3 L/MIN
Configuration	Increasing Pressure/Increasing Current	Maximum Relief Pressure	1000 PSI, 70 BAR
Maximum Operating Pressure	1000 psi	Actuation Type	Electrical
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
For Fluid Type	Mineral-based Hydraulic Fluids	Division	Hydraulic Systems Division
Flow Direction	Nose to Side (1-2)	Valve Material	Hardened Steel
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Maximum Pressure Setting	n/a
Mounting Type	Screw-in Cartridge	Cavity Size	C08-2
Operating Temperature	-34 to 121 °C	Maximum Inlet Pressure Rating	350 bar
Weight	0.14 lb	Function	Proportional Pressure Relief
Coil Type	1/2" Super Coil High Watt (CCP)	Flow Rate	5.3 L/min
Frequency	100 to 400 Hz	Leak Rate	30
Hysteresis	5 %	Configuration	Increasing Pressure/Increasing Current
Operation Type	Solenoid Operated	Cracking Pressure	0.07 bar
Maximum Flow Rate	5.3 L/min	Power Consumption	19 W
Installation Torque	30 Nm	Pressure Control Range	n/a
Maximum Relief Pressure	70 bar	Coil Nut Tightening Torque	3 lb-ft
