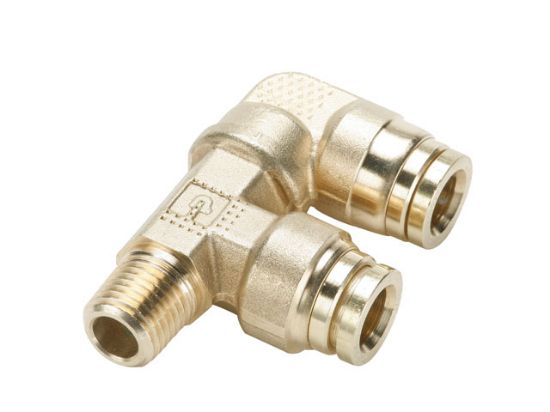

Prestomatic 189PMTR - 189PMTR-6-6-6

Name: Prestomatic 189PMTR - 189PMTR-6-6-6
SKU: 189PMTR-6-6-6

Male Elbow Positional 90° Dual Port - Push-to-Connect Transportation Fitting

Availability:

Backordered

SKU 189PMTR-6-6-6

POR

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Brass
Pkg Qty/UOM	10 EA	Pkg Qty	10
Outer Diameter 1	3/8 Inch	Outer Diameter 2	3/8 Inch
Thread 1	3/8 NPT	Parker Group	Fluid Connector
Inch/Metric	Inch	Material	Brass
Parker Division	Fluid Systems Connector (Brass Products)	Outer Diameter 1 Inch/mm	Inch
Outer Diameter 1	3/8 Inch	Outer Diameter 2	3/8 Inch
Outer Diameter 2 Inch/mm	Inch	Series	Prestomatic
Operating Temperature	-40°F to +200°F	Trade Name	Prestomatic
Pressure Range	Up to 250 PSI	Configuration Type	Tube to Male
Thread 1 Type	NPT	Thread 1	3/8 NPT
Configuration Sub-Type	Male Elbow Positional 90° Dual Port

Product resources

Transportation Fittings (PDF)
