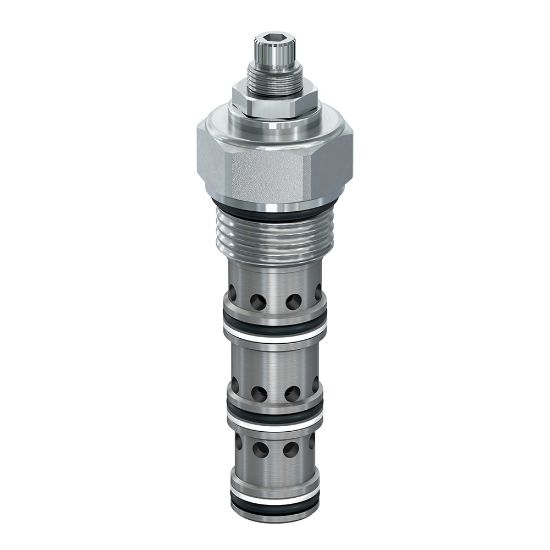

Picture of Priority Pressure Compensators - FCPH121F04

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Priority Pressure Compensators - FCPH121F04

REGIONAL - Parker’s priority pressure compensators provide constant flow regardless of pressure changes via a fixed or adjustable orifice with priority to one outlet port at flows up to 95 lpm (25 gpm) and pressures up to 380 bar (5500 psi).
Availability:
Backordered
SKU FCPH121F04
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileMaximum Priority Flow20 GAL/MIN, 75 L/MIN
Maximum Flow Rate25 GAL/MIN, 95 L/MINPressure Differential40 PSI, 2.8 BAR
Operating Temperature-30 to +250 °FMaximum Flow Rate25 Gal/min
Maximum Operating Pressure380 barBody Materialn/a
Actuation TypePressure CompensationFlow Rate AccuracyN/A
For Fluid TypeMineral-based or synthetic hydraulic fluidsAdjustment MechanismFixed
Flow Rate95 L/minDivisionHydraulic Systems Division
Pressure Differential2.8 barMaximum Priority Flow20 Gal/min
Weight0.28 kgCavity SizeC12-4
FunctionPriority Pressure CompensatorsValve MaterialAll parts steel. All operating parts hardened steel
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4
Maximum Inlet Pressure Rating5500 psiSeal MaterialNitrile
DivisionHydraulic Cartridge Systems DivisionInstallation Torque21 lb-ft
Minimum Operating Temperature-30 °FMaximum Operating Temperature+121 °C
