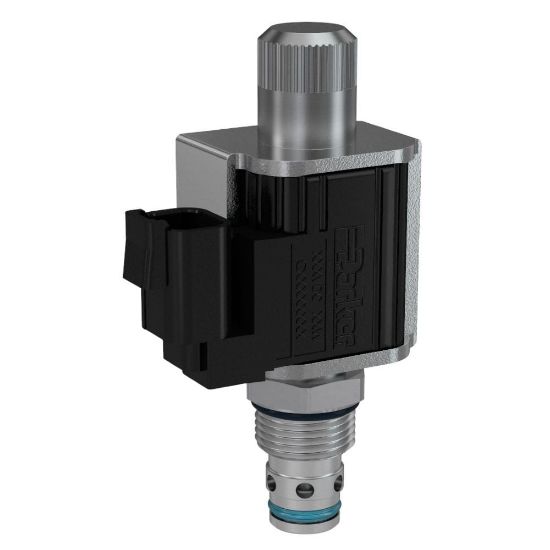

Picture of Proportional Poppet Valves - FAP101NN

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Proportional Poppet Valves - FAP101NN

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).
Availability:
Backordered
SKU FAP101NN
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileConfigurationNormally Open
Maximum Flow Rate14.5 GAL/MIN, 55 L/MINActuation TypeElectrical
Maximum Operating Pressure3000 psiSeal MaterialNitrile
Body Materialn/aDivisionHydraulic Cartridge Systems Division
DivisionHydraulic Systems DivisionMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Weight0.23 kgMinimum Operating Temperature-34 °C
Override Functionalityn/aFlow Rate55 L/min
Cavity SizeC10-2Installation Torque34 Nm
ConfigurationNormally OpenFlow DirectionSide to Nose (2 - 1)
Maximum Operating Temperature+121 °CFunctionProportional Flow Control/Regulator
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4Frequency100-400 Hz
For Fluid TypeMineral-based or synthetic hydraulic fluidsValve MaterialAll parts steel. All operating parts hardened steel
Operating Temperature-30 to +250 °FVariation of Opening PointN/A
Maximum Inlet Pressure Rating210 barHysteresis< 15%
Leak Rate5 @ 3000 PSI (210 BAR) drops/minMaximum Flow Rate14.5 Gal/min
Coil Type5/8" Super Coil Low Watt (CAS)Power Consumption18 W
Coil Nut Tightening Torque1.4 NmVariation of Closing Point60-65% of Input Signal
Minimum Pressure Differential300 psi
