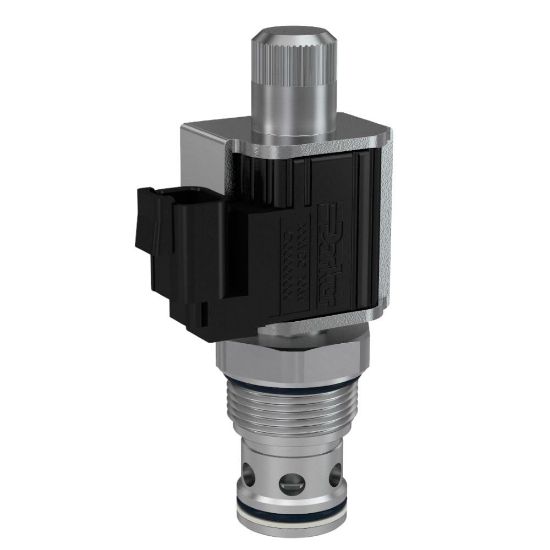

Proportional Poppet Valves - FAP161NN

Name: Proportional Poppet Valves - FAP161NN
SKU: FAP161NN

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU FAP161NN

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Configuration	Normally Open
Maximum Flow Rate	31 GAL/MIN, 117 L/MIN	Actuation Type	Electrical
Seal Material	Nitrile	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Pressure	210 bar
Minimum Operating Temperature	-34 °C	Override Functionality	n/a
Maximum Inlet Pressure Rating	3000 psi	Cavity Size	C16-2
Configuration	Normally Open	Flow Direction	Side to Nose (2 - 1)
Maximum Operating Temperature	+250 °F	Function	Proportional Flow Control/Regulator
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Frequency	100-400 Hz
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Variation of Opening Point	N/A
Hysteresis	< 15%	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Flow Rate	31 Gal/min	Weight	0.9 lb
Maximum Flow Rate	31 Gal/min	Installation Torque	108-115 Nm
Coil Type	5/8" Super Coil Low Watt (CAS)	Power Consumption	18 W
Coil Nut Tightening Torque	1.4 Nm	Variation of Closing Point	60-65% of Input Signal
Minimum Pressure Differential	21 bar
