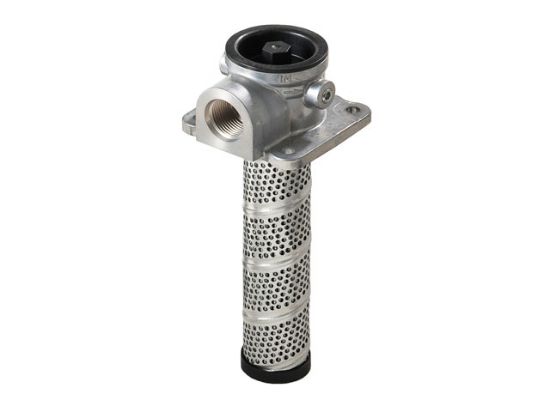

PT2 Series Low Pressure Filter - PT2102QBPGS161

Name: PT2 Series Low Pressure Filter - PT2102QBPGS161
SKU: PT2102QBPGS161

PT2 Series Hydraulic and Lube Oil Low Pressure Filter

Availability:

Backordered

SKU PT2102QBPGS161

POR

Qty:

Products specifications

Attribute name	Attribute value
Nominal Filter Rating	2 micron	Operating Temperature	-40F to 225F (-40C to 107C)
Replacement Element	936750	Indicator Type	Plugged Indicator
Seals	Nitrile	Bypass	25 PSI (1.7 bar)
Max Pressure - Non-Fatigue MAOP	150 psi (10.3 bar)	Pkg Qty	1
Port	16 SAE	UOM	EA
Options	No Option	Nominal Flow Rating	10 GPM (38 LPM)
Element Length	Single	Filter Type	Low Pressure Filter
Nominal Flow Rating	10 GPM (38 LPM)	Element Length	Single
Max Pressure - Non-Fatigue MAOP	150 PSI (10.3 bar)	Options	No Option
Bypass	25 PSI (1.7 bar)	Seals	Nitrile
Port Type	SAE	Parker Division	Hydraulic Filter
Filter Media Type	Microglass III	Nominal Filter Micron Rating	2 micron
Filter Media Code	02Q	Port	16 SAE
Indicator Type	Plugged Indicator	Series	PT2
Parker Group	Filtration	Operating Temperature	-40F to 225F (-40C to 107C)

Product resources

PT Series (PDF)
