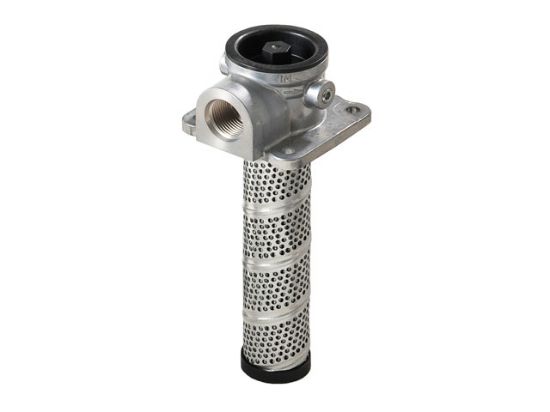

PT2 Series Low Pressure Filter - PT2105QBGGS161

Name: PT2 Series Low Pressure Filter - PT2105QBGGS161
SKU: PT2105QBGGS161

PT2 Series Hydraulic and Lube Oil Low Pressure Filter

Availability:

Backordered

SKU PT2105QBGGS161

POR

Qty:

Products specifications

Attribute name	Attribute value
Operating Temperature	-40F to 225F (-40C to 107C)	Replacement Element	936751
Nominal Filter Rating	5 micron	UOM	EA
Pkg Qty	1	Max Pressure - Non-Fatigue MAOP	150 psi (10.3 bar)
Port	16 SAE	Indicator Type	Pressure Gauge - 25 psi
Nominal Flow Rating	10 GPM (38 LPM)	Element Length	Single
Options	No Option	Bypass	25 PSI (1.7 bar)
Seals	Nitrile	Max Pressure - Non-Fatigue MAOP	150 PSI (10.3 bar)
Options	No Option	Indicator Type	Pressure Gauge - 25 psi
Filter Media Type	Microglass III	Seals	Nitrile
Filter Media Code	05Q	Filter Type	Low Pressure Filter
Nominal Flow Rating	10 GPM (38 LPM)	Element Length	Single
Nominal Filter Micron Rating	5 micron	Bypass	25 PSI (1.7 bar)
Port Type	SAE	Parker Division	Hydraulic Filter
Parker Group	Filtration	Series	PT2
Operating Temperature	-40F to 225F (-40C to 107C)	Port	16 SAE

Product resources

PT Series (PDF)
