*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

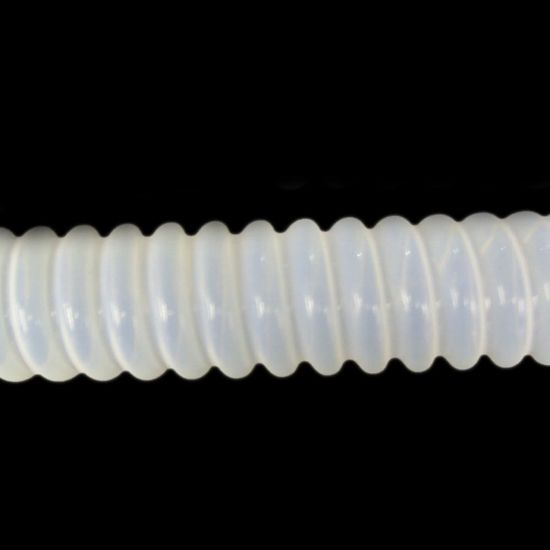

PTFE Convoluted Tubing - CVH01-3/8-NT

Name: PTFE Convoluted Tubing - CVH01-3/8-NT
SKU: CVH01-3/8-NT

Convoluted tubing is extremely flexible and ideal for applications where a tighter bend radius, increased pressure handling or crush resistance is needed.

Availability:

Backordered

SKU CVH01-3/8-NT

POR

Qty:

Products specifications

Attribute name	Attribute value
Length (inch)	random	Product Type	PTFE Heavy Wall 3/8"
Division	Parflex Division	Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
Media	Air	Application	Fluid Handling
Maximum Operating Temperature	500	Specifications Met	FDA 21 CFR 177.1550
Color	Natural	Tube Material	Polytetrafluoroethylene (PTFE)
Compatible Fitting	Compression	Minimum Operating Temperature	-75
Size	3/8	Maximum Operating Pressure	n/a
Minimum Bend Radius	25	Product Style	Convoluted Bulk Coil
Length per Package	Random Length Coils	Cuff Inside Diameter	n/a
Minimum Burst Pressure	n/a	Cuff Length	n/a Cuffing available upon request
Weight	0.039	Tube Inside Diameter	0.335
Tube Outside Diameter	0.510
