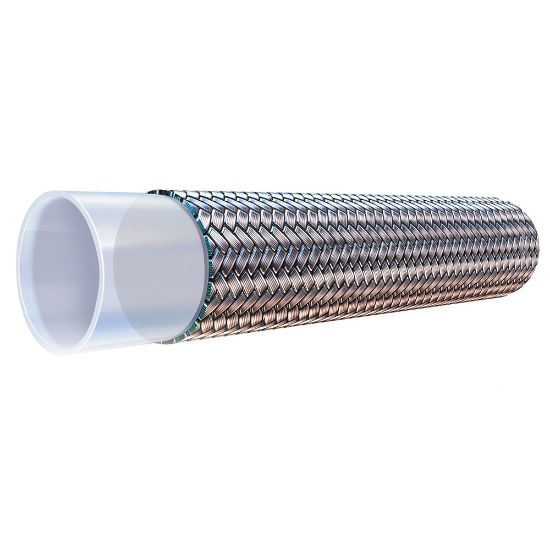

Picture of PTFE Hose - 919 Series - 919-4-100

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PTFE Hose - 919 Series - 919-4-100

PTFE hoses feature superior chemical compatibility, resist moisture, perform in a wide temperature range and offer a low coefficient of friction to assist with flow. Most 919 hoses handle temperatures up to 450°F.
Availability:
Backordered
SKU 919-4-100
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Size-4Length100 ft
Hose TypeSS Braid, NaturalDivisionParflex Division
Product TypePTFE HoseApplicationChemical Transfer
Product StyleSmoothboreSize-4
Cover Materialn/aVacuum Pressure Rating28 Inch-Hg
Hose Inner Tube MaterialPolytetrafluoroethylene (PTFE)Hose Reinforcement MaterialBraid of Stainless Steel
Maximum Operating Temperature450 °FMinimum Operating Temperature-100 °F
Design Factor4:1Weight0.09 kg/m
MediaChemicals (Adhesive)Specifications MetFDA 21 CFR 177.1550
Maximum Operating Pressure20.7 MPaMinimum Bend Radius51 mm
Inside Diameter3/16 inchOutside Diameter8.2 mm
Compatible Fitting91N Series
