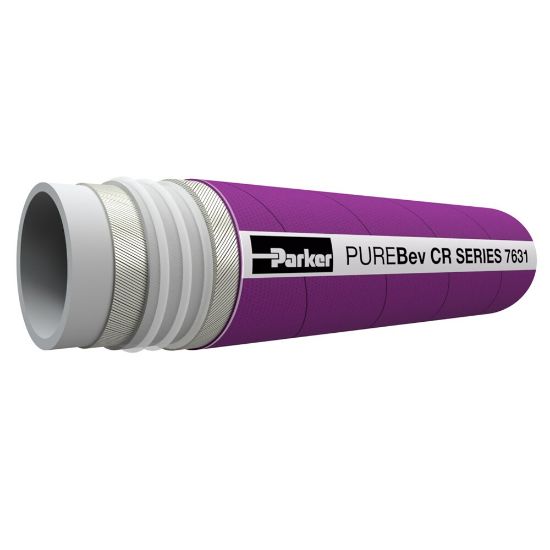

PUREBev Hose Series 7631 - 7631-2000

Name: PUREBev Hose Series 7631 - 7631-2000
SKU: 7631-2000

Note: This product is no longer available - please refer to the “Related Products” section of this page for alternative products, or contact us for further assistance

Availability:

Backordered

SKU 7631-2000

POR

Qty:

Products specifications

Attribute name	Attribute value
Meets Industry Specifications	FDA, DM, CE, 3A,MHLW, REACH, GMP	Hose I.D. (inch)	2
Application	Beverage Transfer	Hose O.D. (inch)	2.68
Maximum Operating Temperature	120 °C	Outside Diameter	68 mm
Inside Diameter	51 mm	Hose Reinforcement Material	Synthetic Plies
Minimum Bend Radius	240 mm	Division	Hose Products Division
Cover Structure	Smooth	Vacuum Pressure Rating	20.4 inch-Hg
Maximum Operating Pressure	150 psi	Specifications Met	CE
Weight	1.93 kg/m	Hose Inner Tube Material	Butyl
Minimum Burst Pressure	30 bar	Minimum Operating Temperature	-40 °C
Media	Food & Beverage (Wine)	Application	Beverage (Wine)
