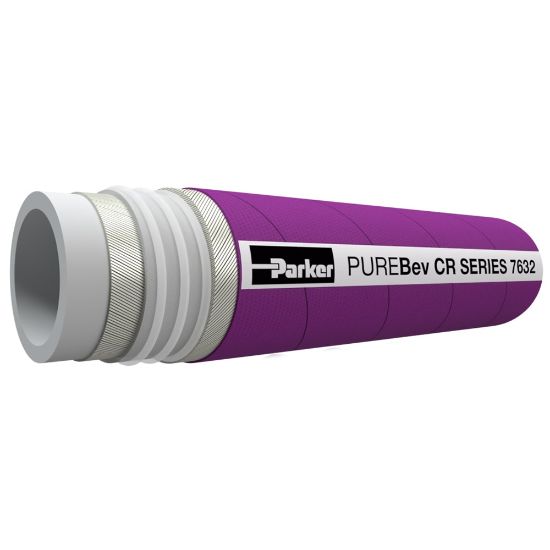

PUREBev Hose Series 7632 - 7632-3000

Name: PUREBev Hose Series 7632 - 7632-3000
SKU: 7632-3000

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:

Backordered

SKU 7632-3000

POR

Qty:

Products specifications

Attribute name	Attribute value
Hose I.D. (inch)	3	Meets Industry Specifications	FDA, DM, CE, 3A,MHLW, REACH, GMP
Application	Beverage Transfer	Hose O.D. (inch)	3.78
Minimum Operating Temperature	-40 °F	Division	Hose Products Division
Maximum Operating Temperature	120 °C	Minimum Burst Pressure	1000 psi
Maximum Operating Pressure	250 psi	Cover Structure	Smooth
Hose Inner Tube Material	White	Inside Diameter	76 mm
Specifications Met	REACH	Application	Consumable Liquids
Media	Food & Beverage (Beer)	Vacuum Pressure Rating	20.4 inch-Hg
Hose Reinforcement Material	Synthetic Plies	Weight	3.23 kg/m
Outside Diameter	96.0 mm	Minimum Bend Radius	390 mm

Product resources

Literature and Reference Materials

Training

Specifying Hose for Food & Beverage Applications (PDF)
