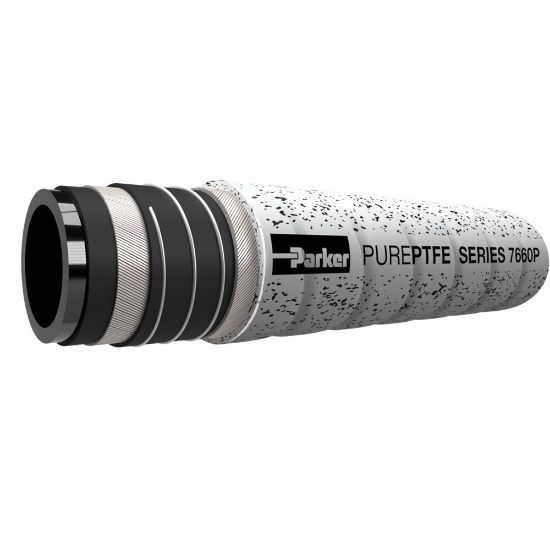

Picture of PUREPTFE Hose Series 7660P - 7660P-1500

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PUREPTFE Hose Series 7660P - 7660P-1500

Note: This product is no longer available - please contact us for further assistance
Availability:
Backordered
SKU 7660P-1500
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)1.5Hose O.D. (inch)2
ApplicationChemical, Pharmaceutical, Cosmetics TransferMeets Industry SpecificationsFDA,CE, 3A,USP,ISO,REACH,GMP
Maximum Operating Temperature302 °FMinimum Operating Temperature-40 °C
DivisionHose Products DivisionMediaChemicals
Minimum Burst Pressure600 psiMaximum Operating Pressure150 psi
Hose Inner Tube MaterialBlackInside Diameter38 mm
Minimum Bend Radius190 mmOutside Diameter51 mm
Cover ColorWhiteWeight1.24 kg/m
Cover MaterialLow Friction MaterialVacuum Pressure Rating90 kPa
ApplicationCosmeticsSpecifications MetUSP
Hose Reinforcement MaterialStainless Steel Wire Helix
