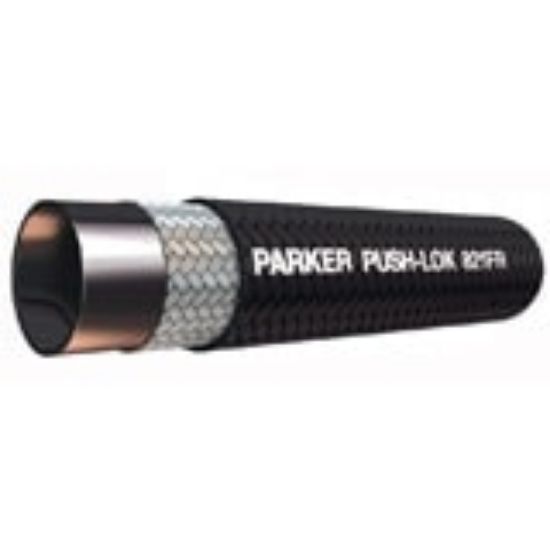

Push-Lok Fire Resistant Cover Multipurpose Hose 250-350 PSI – 821FR Hose - 821FR-12-BLK

Name: Push-Lok Fire Resistant Cover Multipurpose Hose 250-350 PSI – 821FR Hose - 821FR-12-BLK
SKU: 821FR-12-BLK

Parker's 821FR hose is a fire resistant hose that has a pressure range of 250-350 PSI, and is amongst the Push-Lok multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

Availability:

Backordered

SKU 821FR-12-BLK

POR

Qty:

Products specifications

Attribute name	Attribute value
Hose I.D. (size)	-12	Color	Black
Division	Hose Products Division	Specifications Met	N/A
Design Factor	4:1	Vacuum Pressure Rating	711 mm-Hg
Size	-12	Inside Diameter	3/4 inch
Maximum Operating Pressure	1.7 MPa	Outside Diameter	26.2 mm
Nominal Hose Inside Diameter	19 mm	Application	Lubricating Oils
Hose Reinforcement Material	1 Braid of Fiber	Hose Inner Tube Material	PKR® Rubber
Weight	0.33 kg/m	Media	Air (Compressed Air with traces of Oil)
Minimum Bend Radius	178 mm	Compatible Fitting	82 Series
Minimum Operating Temperature	-40 °F (Oil)	Maximum Operating Temperature	212 °F (Oil)
Cover Material	Fire Resistant Fiber Braid	Hose Cover Type	Fiber Braid
