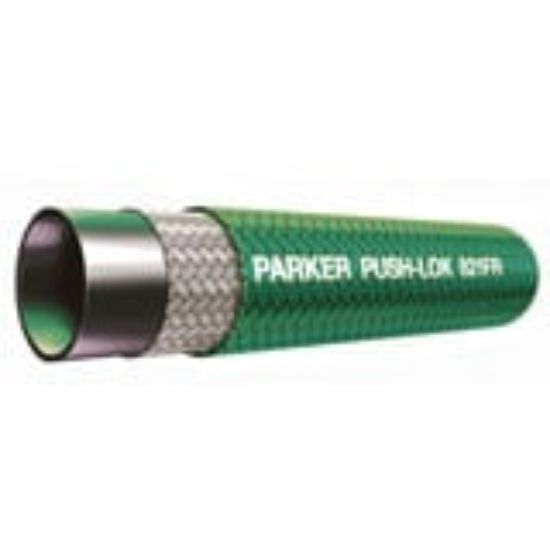

Picture of Push-Lok Fire Resistant Cover Multipurpose Hose 250-350 PSI – 821FR Hose - 821FR-12-GRN

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Push-Lok Fire Resistant Cover Multipurpose Hose 250-350 PSI – 821FR Hose - 821FR-12-GRN

Parker's 821FR hose is a fire resistant hose that has a pressure range of 250-350 PSI, and is amongst the Push-Lok multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.
Availability:
Backordered
SKU 821FR-12-GRN
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
ColorGreenHose I.D. (size)-12
DivisionHose Products DivisionMaximum Operating Pressure250
Specifications MetN/ADesign Factor4:1
Vacuum Pressure Rating28Weight0.22
ApplicationPneumaticsSize-12
Inside Diameter3/4Outside Diameter1.030
Minimum Bend Radius7Hose Reinforcement Material1 Braid of Fiber
Hose Inner Tube MaterialPKR® RubberMediaAir (Compressed Air with traces of Oil)
Nominal Hose Inside Diameter19Compatible Fitting82 Series
Minimum Operating Temperature-40 °C (Oil)Maximum Operating Temperature100 °C (Air)
Cover MaterialFire Resistant Fiber BraidHose Cover TypeFiber Braid
