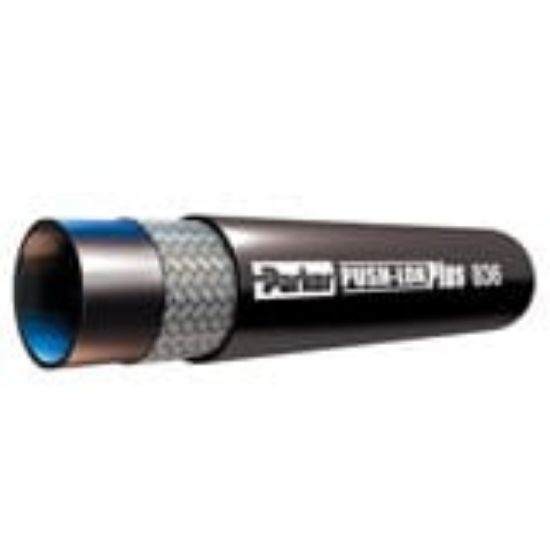

Picture of Push-Lok Plus High Temperature Multipurpose Hose 300-400 PSI – 836 Hose - 836-10-BLK

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Push-Lok Plus High Temperature Multipurpose Hose 300-400 PSI – 836 Hose - 836-10-BLK

Heat-resistant Push-Lok Plus 836 hoses accommodate higher working pressures and higher temperatures than other Push-Lok Plus hoses while offering the same compatibility features.
Availability:
Backordered
SKU 836-10-BLK
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (size)-10ColorBlack
ApplicationLubricating OilsDesign Factorn/a
Hose Reinforcement Material1 Braid of FiberCompatible Fitting82 Series
Nominal Hose Inside Diameter16 mmWeight0.19 lb/ft
Maximum Operating Temperature212 °F (Air)Cover MaterialPKR® Rubber
Minimum Operating Temperature-48 °C (Oil)Maximum Operating Pressure350 psi
Size-10Vacuum Pressure Rating18 Inch-Hg
DivisionHose Products DivisionHose Inner Tube MaterialPKR® Rubber
Minimum Bend Radius125 mmMediaAir (Compressed Air with traces of Oil)
Inside Diameter16 mmOutside Diameter23 mm
Specifications MetN/A
