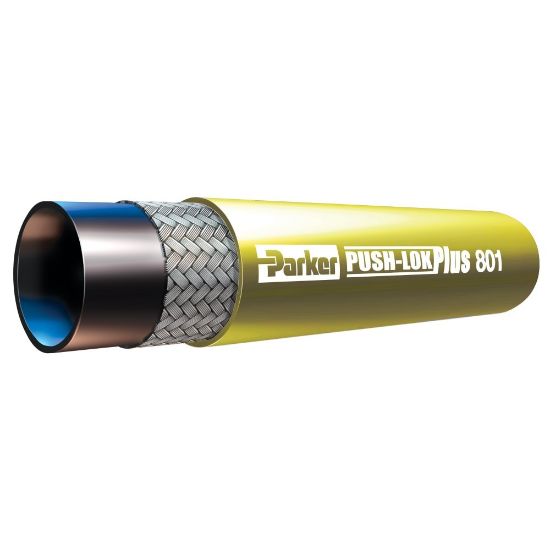

Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose - 801-12-YEL

Name: Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose - 801-12-YEL
SKU: 801-12-YEL

Parker's 801 hose has a pressure range of 200-350 PSI, and is amongst the Push-Lok Plus multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

Availability:

Backordered

SKU 801-12-YEL

POR

Qty:

Products specifications

Attribute name	Attribute value
Hose I.D. (size)	-12	Color	Yellow
Division	Hose Products Division	Specifications Met	N/A
Design Factor	4:1	Maximum Operating Pressure	300 psi
Size	-12	Inside Diameter	19 mm
Outside Diameter	1.030 inch	Hose Inner Tube Material	Synthetic Rubber
Nominal Hose Inside Diameter	19 mm	Application	Petroleum Base Hydraulic Fluids
Hose Reinforcement Material	1 Braid of Fiber	Media	Petroleum Hydraulic Fluids
Cover Material	MSHA Approved	Vacuum Pressure Rating	15 Inch-Hg
Weight	0.36 kg/m	Minimum Bend Radius	7 inch
Compatible Fitting	82 Series	Maximum Operating Temperature	185 °F (Water)
Minimum Operating Temperature	-40 °F (Oil)
