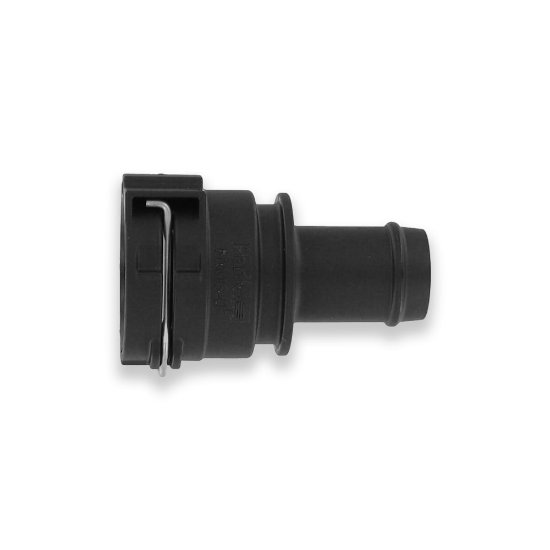

Picture of Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series - FVDA16HB-0750

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series - FVDA16HB-0750

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)
Availability:
Backordered
SKU FVDA16HB-0750
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection 1 Hose Inside Diameter0.629" (I.D.)Product StyleFVDA
Length (inch)2.27"ShapeStraight
ConfigurationBarb to Female VDAProduct TypeHose Fitting
Maximum Operating Pressure125.0Connection 1 Size0.630
Maximum Operating Temperature212.0NotesMale VDA Size: 0.630" / 16 mm
Product SeriesRubber Hose, GPH HoseApplicationFluid Transfer
Product StyleFVDALength2.27
Connection 2 Size0.750ShapeStraight
Materials of ConstructionHigh Performance Glass Filled PolyamideMinimum Operating Temperature-40.0
DivisionParflex DivisionFitting TypeFemale VDA / Beaded Barb
Connection Sizen/aBrandPARKER
For Fluid TypeCoolants (Water Based)DivisionParflex Division
Connection TypeFemale VDA, Beaded BarbIndustryTransportation
Size0.750Seal MaterialEPDM (O-Ring)
Vacuum Pressure Ratingn/a
