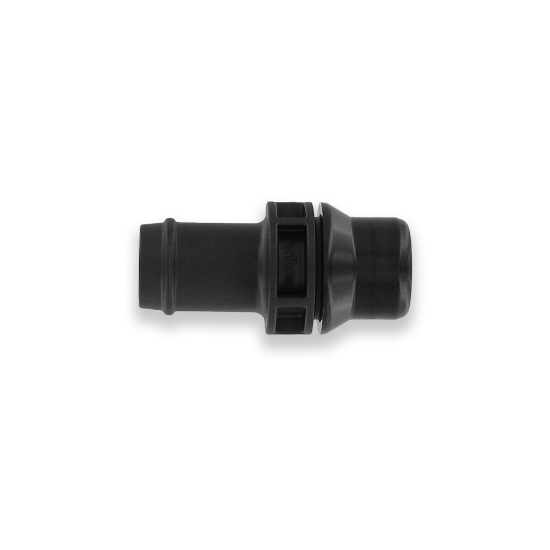

Picture of Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series - MVDA16HB-0750

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series - MVDA16HB-0750

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)
Availability:
Backordered
SKU MVDA16HB-0750
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
ShapeStraightLength (inch)2.27"
Connection 1 Hose Inside Diameter0.629" (I.D.)Product StyleMVDA
BrandPARKERDivisionParflex Division
ShapeStraightIndustryTransportation
Connection Sizen/aDivisionParflex Division
ApplicationFluid TransferMaximum Operating Temperature212.0
Vacuum Pressure Ratingn/aSeal MaterialEPDM (O-Ring)
Minimum Operating Temperature-40.0Maximum Operating Pressure125.0
For Fluid TypeCoolants (Water Based)Size0.750
NotesMale VDA Size: 0.630" / 16 mmLength2.27
Product TypeHose FittingProduct SeriesECH
Connection 1 Size0.630Materials of ConstructionHigh Performance Glass Filled Polyamide
Connection 2 Size0.750ConfigurationBarb to Male VDA
Connection TypeMale, Beaded BarbFitting TypeMale VDA / Beaded Barb
Product StyleMVDA
