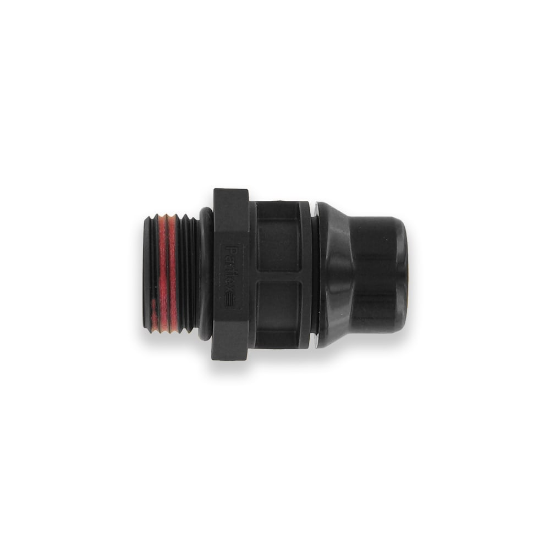

Picture of Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series - MVDA2005-12

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series - MVDA2005-12

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)
Availability:
Backordered
SKU MVDA2005-12
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
ShapeStraightLength (inch)2.28"
Connection 1 Hose Inside Diameter0.472" (I.D.)Product StyleMVDA Adapter
BrandPARKERDivisionParflex Division
ShapeStraightIndustryTransportation
DivisionParflex DivisionConnection 2 TypeMale SAE-ORB
Connection 2 Thread Size1 1/16-12ApplicationFluid Transfer
Length2.28Maximum Operating Temperature212.0
Connection 2 Size3/4Vacuum Pressure Ratingn/a
Seal MaterialEPDM (O-Ring)Minimum Operating Temperature-40.0
Maximum Operating Pressure125.0For Fluid TypeCoolants (Water Based)
Product SeriesECHMaterials of ConstructionHigh Performance Glass Filled Polyamide
Product TypePort AdaptorConfigurationPort Adaptor
Connection Size-12.0Connection TypeMale VDA to SAE-ORB
Size20.0Fitting TypePort Adaptor
Product StyleMVDA Port AdaptorConnection 1 Size0.787
Connection 1 TypeMale VDA
