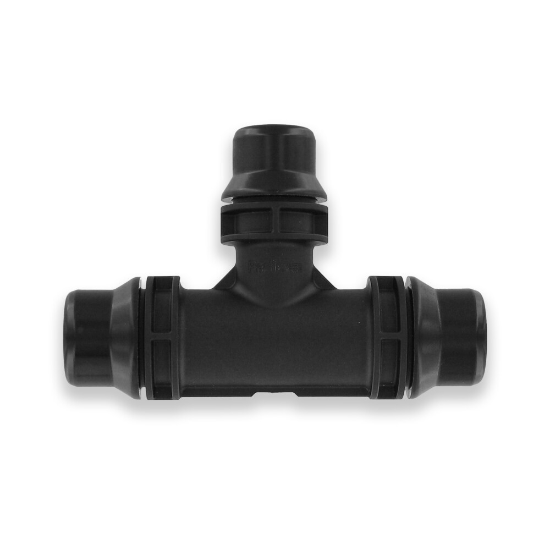

Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series - MVDA202016T

Name: Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series - MVDA202016T
SKU: MVDA202016T

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)

Availability:

Backordered

SKU MVDA202016T

POR

Qty:

Products specifications

Attribute name	Attribute value
Shape	Tee	Connection 1 Hose Inside Diameter	0.787" (I.D.)
Length (inch)	4.33"	Product Style	MVDA Reducing Tee
Brand	PARKER	Division	Parflex Division
Industry	Transportation	Connection Size	n/a
Division	Parflex Division	Shape	Tee
Application	Fluid Transfer	Connection Type	Male
Maximum Operating Temperature	212.0	Vacuum Pressure Rating	n/a
Seal Material	EPDM (O-Ring)	Minimum Operating Temperature	-40.0
Maximum Operating Pressure	125.0	For Fluid Type	Coolants (Water Based)
Product Series	ECH	Materials of Construction	High Performance Glass Filled Polyamide
Product Type	Hose Adaptor	Configuration	Male VDA Reducing Tee
Length	4.33	Fitting Type	Reducing Tee
Product Style	MVDA Reducing Tee	Connection 1 Size	0.787
Connection 2 Size	0.787	Connection 3 Size	0.630
