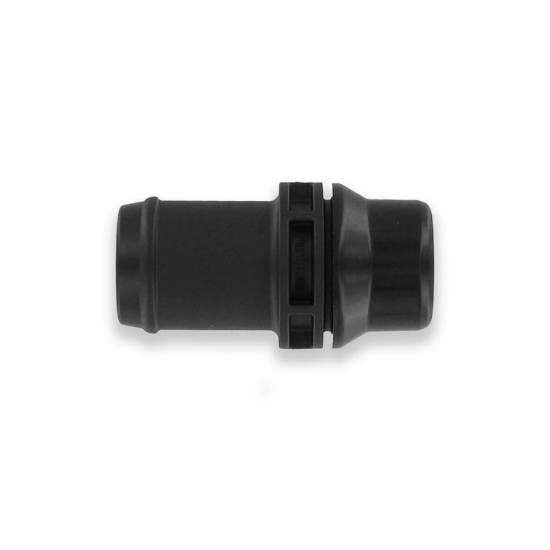

Picture of Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series - MVDA20HB-1000

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series - MVDA20HB-1000

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)
Availability:
Backordered
SKU MVDA20HB-1000
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
ShapeStraightLength (inch)2.40"
Connection 1 Hose Inside Diameter0.787" (I.D.)Product StyleMVDA
BrandPARKERDivisionParflex Division
ShapeStraightIndustryTransportation
Connection Sizen/aDivisionParflex Division
ApplicationFluid TransferMaximum Operating Temperature212.0
Vacuum Pressure Ratingn/aSeal MaterialEPDM (O-Ring)
Minimum Operating Temperature-40.0Maximum Operating Pressure125.0
For Fluid TypeCoolants (Water Based)Product TypeHose Fitting
Product SeriesECHMaterials of ConstructionHigh Performance Glass Filled Polyamide
ConfigurationBarb to Male VDAConnection TypeMale VDA, Beaded Barb
Size1.000Length2.4
Fitting TypeMale VDA / Beaded BarbProduct StyleMVDA
Connection 1 Size0.787Connection 2 Size1.000
NotesMale VDA Size: 0.787" / 20 mm
