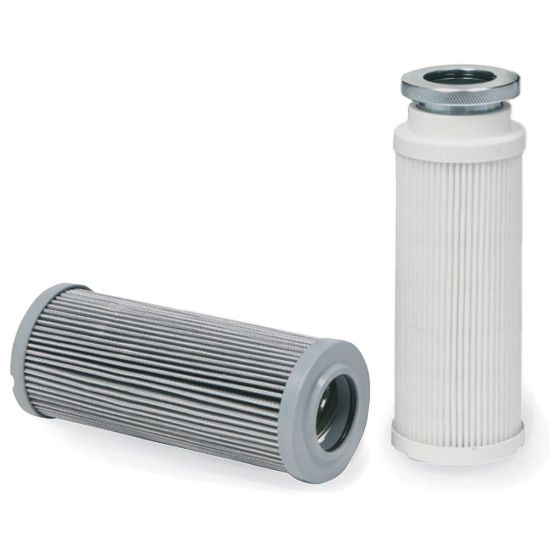

Replacement Elements - 45M Series - 938961Q

Name: Replacement Elements - 45M Series - 938961Q
SKU: 938961Q

The 45M-Series elements are available as Ecoglass version without inner core and as conventional Microglass version.
These elements have a Multi-layered design with the latest in filter media technology for high capacity and efficiency.

Availability:

Backordered

SKU 938961Q

POR

Qty:

Products specifications

Attribute name	Attribute value
Micron Rating	5 µm	Seal Material	Nitrile
Filter Element	05Q Microglass	Length	116 mm
Options	Standard	Vessel Size	Length 1
Diameter	80 mm	Technology	Filtration
Brand	PARKER	Operating Temperature	-40 to 100 °C
Division	Hydraulic & Industrial Process Filtration Division EMEA	Industry	Industrial Manufacturing Equipment<br/>Off-Road Machinery
Maximum Flow Rate	260 L/min	Application	Hydraulic Filtration
Operating Pressure	up to 40 bar	Product Type	Filter Element
For Fluid Type	Mineral and vegetable oils and some synthetic oils	Product Series	45M
Maximum Pressure Differential	20 bar (ISO 2941)	Division	Hydraulic & Industrial Process Filtration Division EMEA
Filter Material	Microglass III<br/>Ecoglass III

Product resources

Literature and Reference Materials

BROCHURE-45M Series (PDF)
