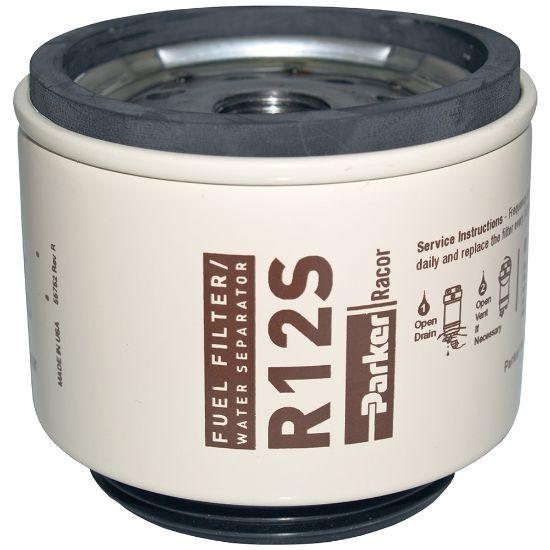

Replacement Filter Elements – Racor Spin-on Series - R12S

Name: Replacement Filter Elements – Racor Spin-on Series - R12S
SKU: R12S

Spin-on Series Replacement Filter Elements can be used in a wide range of Racor fuel filter / water separator housings. The elements utilize proprietary Aquabloc® engineered media, which provides excellent water removal and dirt-holding capabilities.

Availability:

Backordered

SKU R12S

POR

Qty:

Products specifications

Attribute name	Attribute value
Location	North America and EMEA regions	Connection Type	2.4" Male Bottom Threads
Product Series	120A, 140R	Thread Size	M18 x 1.5
Height	2.4" (61 mm)	Outside Diameter	3.0" (76 mm)
Filter Element Type	2 Micron Aquabloc® Spin-on	Micron Rating	98% : 4
Division	Engine Mobile Original Equipment Division	Specifications Met	No
Brand	Racor	Related Parts	Clear Bowl: RK 10215
Product Series	Diesel Spin-on FF/WS	Flow Direction	Inside-to-Outside

Product resources

Literature and Reference Materials

Parker Racor--Changing Filtation--FDRB583UK (PDF)
