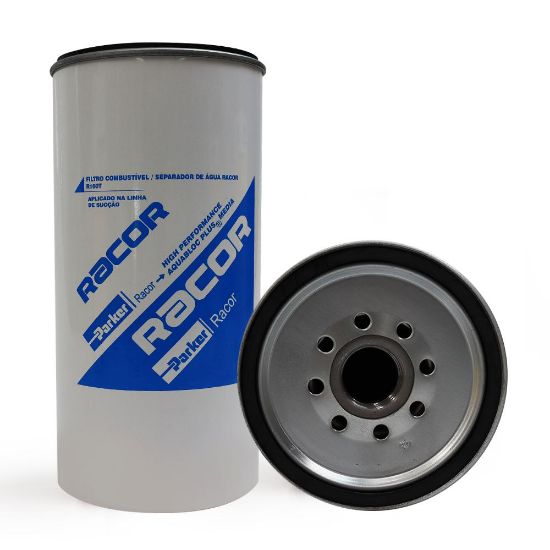

Replacement Filter Elements – Racor Spin-on Series - R160T

Name: Replacement Filter Elements – Racor Spin-on Series - R160T
SKU: R160T

Spin-on Series Replacement Filter Elements can be used in a wide range of Racor fuel filter / water separator housings. The elements utilize proprietary Aquabloc® engineered media, which provides excellent water removal and dirt-holding capabilities.

Availability:

Backordered

SKU R160T

POR

Qty:

Products specifications

Attribute name	Attribute value
Thread Size	1"-14	Outside Diameter	4.3" (109 mm)
Height	8.3" (210 mm)	Product Series	4160R
Location	EMEA region only	Connection Type	3.75" Female Bottom Threads
Filter Element Type	10 Micron Aquabloc® Spin-on	Industry	• Linha pesada Transportes<br/>• Caminhões e Ônibus
Flow Direction	Normal Flow	Thread Size	UNS-2B
Product Series	Diesel Spin-on FF/WS	Length	216.5 mm
Outside Diameter	111.5 mm	Division	Engine Mobile Original Equipment Division
Specifications Met	No	Division	La Filtration Sao Paulo Bra
Product Type	Elemento de Reposição	Weight (per unit of measure)	0.94 kg
Compatible Competitor Part Number	Mercedes Benz A0004771302; John Deere AT365869; A000.477.13.02; R90MER; Scania 1780730; Volvo 11110683; 11110683	Brand	Racor
Application	Mercedes Benz; Scania; Volvo; Volvo	Related Parts	Clear Bowl: DRK 00055
Micron Rating	98% : 10 MICRON	Technology	Filtration
Includes	Gaskets: [1]	Packing Material	Caixa individual - (C x L x A) [mm] 113 x 113 x 224
Quantity per Box	6

Product resources

Literature and Reference Materials

Parker Racor--Changing Filtation--FDRB583UK (PDF)
