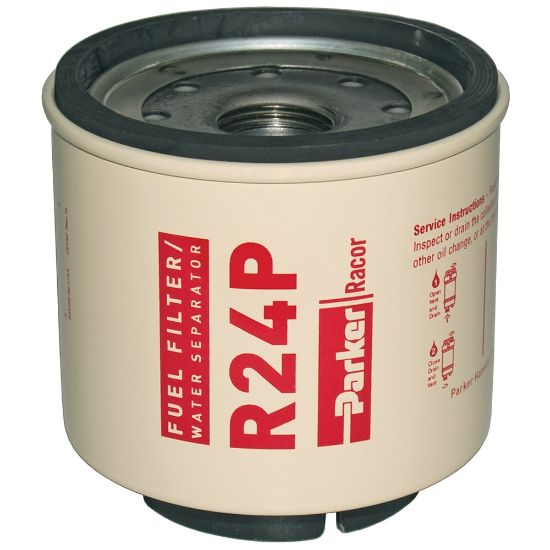

Replacement Filter Elements – Racor Spin-on Series - R24P

Name: Replacement Filter Elements – Racor Spin-on Series - R24P
SKU: R24P

Spin-on Series Replacement Filter Elements can be used in a wide range of Racor fuel filter / water separator housings. The elements utilize proprietary Aquabloc® engineered media, which provides excellent water removal and dirt-holding capabilities.

Availability:

Backordered

SKU R24P

POR

Qty:

Products specifications

Attribute name	Attribute value
Connection Type	1.25" Female Bottom Threads	Outside Diameter	3.8" (97 mm)
Product Series	220R Center Thread Bowl	Height	3.5" (89 mm)
Location	North America and EMEA regions	Thread Size	1"-14
Filter Element Type	30 Micron Aquabloc® Spin-on	Micron Rating	98% : 30
Brand	Racor	Product Series	Diesel Spin-on FF/WS
Related Parts	Clear Bowl: RK 20135	Flow Direction	Inside-to-Outside
Division	Engine Mobile Original Equipment Division	Specifications Met	No

Product resources

Literature and Reference Materials

Parker Racor--Changing Filtation--FDRB583UK (PDF)
