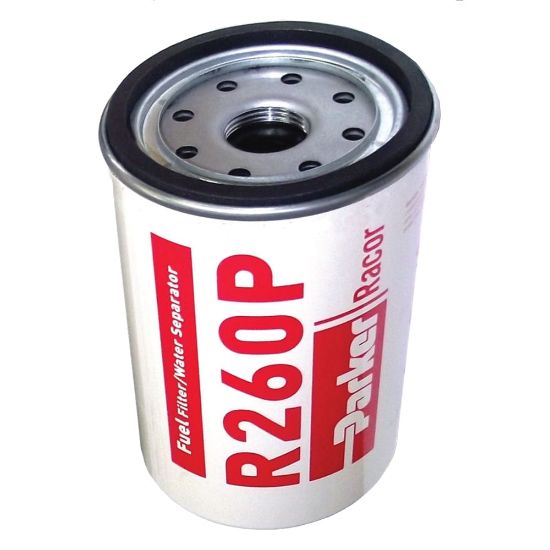

Replacement Filter Elements – Racor Spin-on Series - R260P

Name: Replacement Filter Elements – Racor Spin-on Series - R260P
SKU: R260P

Spin-on Series Replacement Filter Elements can be used in a wide range of Racor fuel filter / water separator housings. The elements utilize proprietary Aquabloc® engineered media, which provides excellent water removal and dirt-holding capabilities.

Availability:

Backordered

SKU R260P

POR

Qty:

Products specifications

Attribute name	Attribute value
Filter Element Type	30 Micron Aquabloc® Spin-on	Thread Size	1"-14
Outside Diameter	3.7" (94 mm)	Product Series	260
Connection Type	3.75" Female Bottom Threads	Location	EMEA region only
Height	5.5" (140 mm)	Industry	• Linha pesada Transportes<br/>• Caminhões e Ônibus
Flow Direction	Normal Flow	Specifications Met	No
Division	La Filtration Sao Paulo Bra	Outside Diameter	97 mm
Product Series	Diesel Spin-on FF/WS	Technology	Filtration
Packing Material	Caixa individual - (C x L x A) [mm] 100 x 100 x 163	Product Type	Elemento de Reposição
Division	Engine Mobile Original Equipment Division	Weight (per unit of measure)	0.54 kg
Compatible Competitor Part Number	Volvo 20480593; 20514654; 20998367; 20998367	Quantity per Box	6
Related Parts	Clear Bowl: DRK 00055	Brand	PARKER
Includes	Gaskets: [1], O'ring [1]	Length	144 mm
Micron Rating	30 micron to Aquabloc	Thread Size	1"-14
Application	Volvo; Volvo

Product resources

Literature and Reference Materials

Parker Racor--Changing Filtation--FDRB583UK (PDF)
