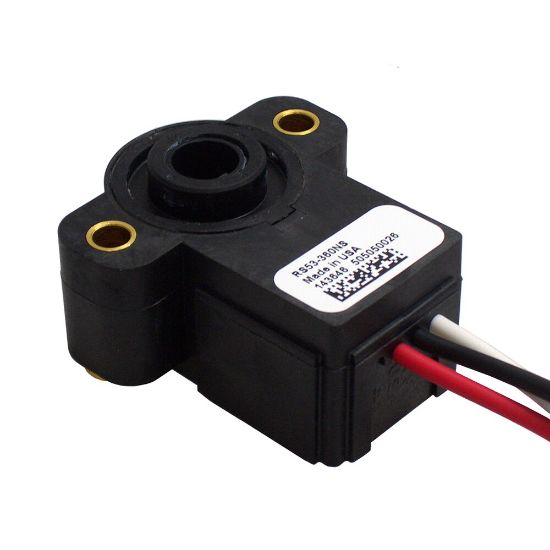

Picture of Rotary Position Sensor - RS - 01708ECD

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Rotary Position Sensor - RS - 01708ECD

Parker's Rotary Position Sensors are Hall Effect devices with an output voltage dependent upon the angular position of the sensor. They utilize non-contacting technology and are offered in several linear ranges up to 360 degrees of rotation.
Availability:
Backordered
SKU 01708ECD
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Electrical Output Range120°Minimum Operating Temperature-40 °C
Maximum Travel Angle170 °Return TypeNone
Mounting OptionHole Spacing 63.5 mmHousing MaterialGlass-filled Nylon
Model NumberRS60Ingress Protection Rating66
Drive Axis TypeThru Hole DriverMaximum Operating Temperature125 °C
DivisionElectronic Motion and Controls DivisionOutput Current Rating1 mA (each output)
Signal Output0.5 to 4.5 VDCMaximum Output Error5 %
Power Supply Voltage5 VDCNumber of Outputs2 opposing
Mounting Hole Diameter5.3 mmSensor TypeRotation
IndustryAgricultureHysteresis3 %
Operating Current24 mA max.Electrical ConnectionDTM04
