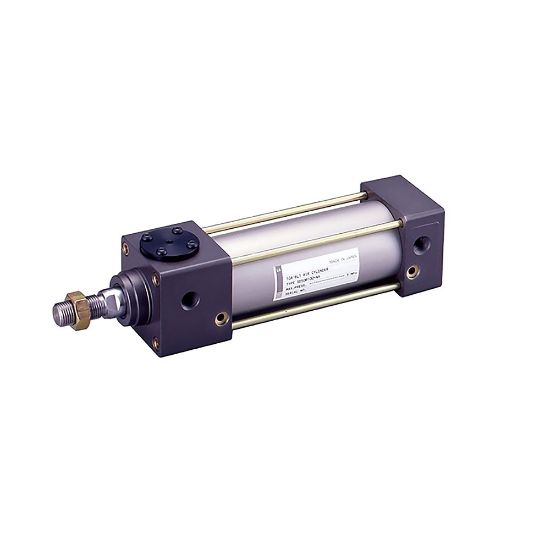

Picture of Safety Lock Cylinder Model:10A-6L - 10A-6L2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Safety Lock Cylinder Model:10A-6L - 10A-6L2

Pneumatic cylinder 10A-6L series that securely locks the piston rod in an emergency with a safety lock mechanism. The tie rod construction guarantees long cylinder life with excellent design and quality without trouble.
Availability:
Backordered
SKU 10A-6L2
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Fluid TypeAirLubricationUnnecessary(But possible)
Bore Diameter (mm)40, 50, 63, 80, 100TypeWith safety lock on cap side type
Speed Range30-700mm/sBacklash (mm)1 or less(When locking)
Related PartsCB,TC bracketMounting StyleSD, LA, LB, FA, FB, CA, CB, CC, TC
Rod End StylesRod eye(T-end), Rod eye(S-end) with spherical bearing, Rod clevis(Y-end)with pin, Floating joint (F-end:Do not use together with Mounting style CA,CB,CC and TC accessories.)Cushioning TypeWith cushions on both ends(With needle removal preventing mechanism)
Bellows MaterialNylon tarpaulin(Standard), Chloroprene(Semi-standard), Conex(Semi-standard)Holding Force (N)880(φ40), 1374(φ50), 2182(φ63), 3519(φ80), 5498(φ100)
Pressure Range (MPa)0.15-1.0Proof Pressure (MPa)1.5
Temperature Range (C)-10-70 (No freezing)DivisionTAIYO Division
