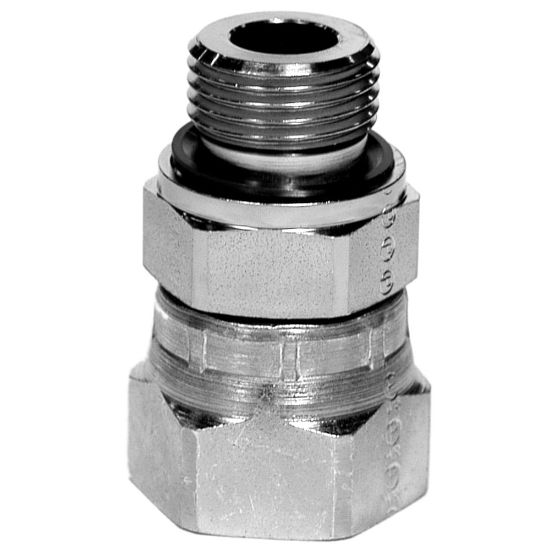

Picture of Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 10-12F642EDMLS

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 10-12F642EDMLS

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.
Availability:
Backordered
SKU 10-12F642EDMLS
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionTube Fittings DivisionBody MaterialSteel
Maximum Dynamic Pressure6000 psiShapeStraight
O-Ring Material90 Durometer NitrileSpecifications MetSAE J1453
Connection TypeO-ring Face SealConnection 1 TypeFemale O-Ring Face Seal Swivel
Connection 3 TypenaConnection 4 Typena
Connection 2 Thread SizenaConnection 3 Thread Sizena
Connection 1 Tube Outside Diameter5/8 inchConnection 3 Tube Outside Diameterna
Connection 4 Tube Outside DiameternaConnection 2 TypeMale BSPP ED Seal
Connection 2 Tube Outside Diameter3/4-14 mm
