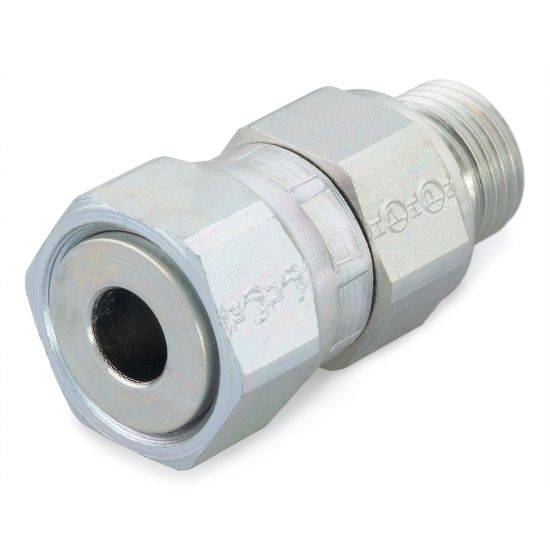

Picture of Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8M16F682EDMLS

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8M16F682EDMLS

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.
Availability:
Backordered
SKU 8M16F682EDMLS
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection 2 Tube Outside Diameterna inchBody MaterialSteel
Connection 2 TypeMale metric thread - ED seal (ISO 9974)DivisionTube Fittings Division
Connection 3 TypenaSpecifications MetSAE J1453
Connection 4 TypenaConnection 1 Tube Outside Diameter12 mm
O-Ring Material90 Durometer NitrileConnection 1 TypeFemale O-Ring Face Seal Swivel
Connection 4 Tube Outside DiameternaConnection 2 Thread SizeM16x1.5
Maximum Dynamic Pressure9000 psiConnection 3 Tube Outside Diameterna
Connection TypeTube to SAE Straight ThreadConnection 3 Thread Sizena
ShapeStraight
