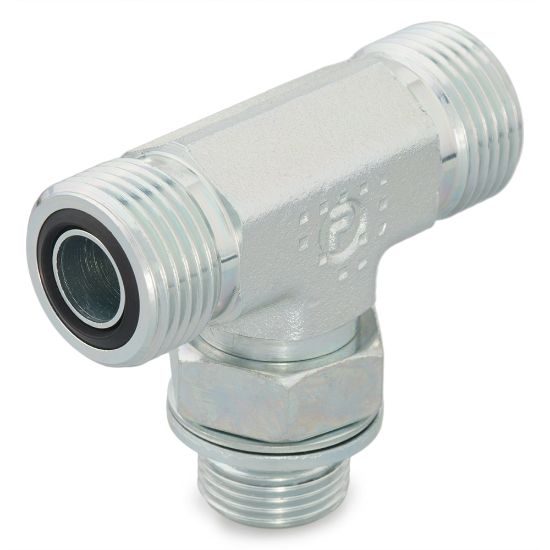

Picture of Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8S4OMLOS

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8S4OMLOS

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.
Availability:
Backordered
SKU 8S4OMLOS
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection TypeO-ring Face SealConnection 4 Tube Outside Diameterna
Connection 2 TypeMale O-Ring Face SealConnection 2 Thread Sizena
ShapeTeeSpecifications MetSAE J1453
Body MaterialSteelDivisionTube Fittings Division
O-Ring Material90 Durometer NitrileMaximum Dynamic Pressure3600 psi
Connection 4 TypenaConnection 3 Thread Sizena
Connection 2 Tube Outside Diameter12 mmConnection 1 TypeMale O-Ring Face Seal
Connection 1 Tube Outside Diameter1/2 inchConnection 3 TypeMale BSPP Retaining Ring
Connection 3 Tube Outside Diameterna
