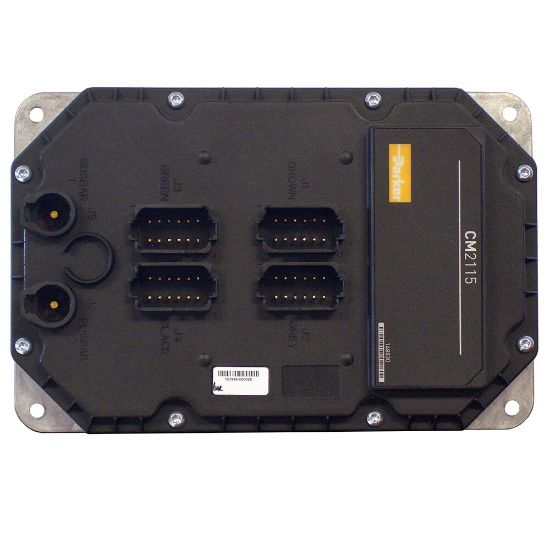

Picture of Semi-custom Controller Module - CM2115 - 0935024ECD

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Semi-custom Controller Module - CM2115 - 0935024ECD

Parker's CM2115 controller module is a rugged unit that is perfect when used alone or with other controllers in a system. The CM2115 is programmed in C by customers to meet their needs. It communicates using J1939 protocol over a CAN bus connection.
Availability:
Backordered
SKU 0935024ECD
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Model NumberCM2115Specifications Met2004/108/EC
IndustryForestryOutput Current Rating2.5 A (2x)
SoftwareC and SDKNumber of Inputs21
Maximum Operating Temperature85 °CPower Supply Voltage6 to 32 VDC
Minimum Operating Temperature-40 °CNumber of Outputs15
Electrical ConnectionDeutsch DT04Controller TypeMaster Controller
Communication Interface2x CAN (J1939)Ingress Protection Rating66
DivisionElectronic Motion and Controls DivisionHousing MaterialPlastic
