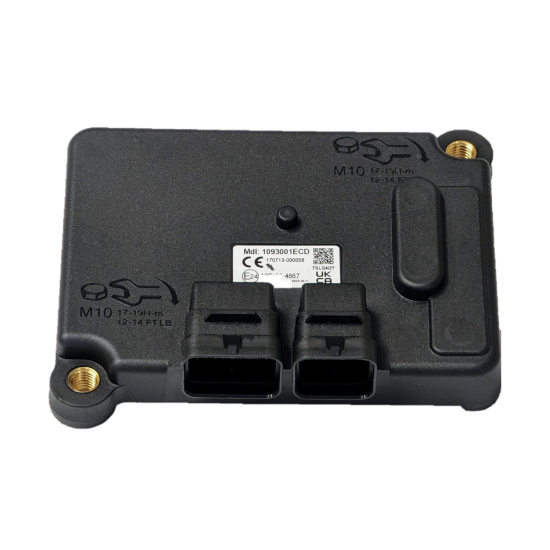

Picture of Semi-custom Controller Module - CM2723 - 1093001ECD

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Semi-custom Controller Module - CM2723 - 1093001ECD

The CM2723 controller module is a compact solution designed to withstand harsh environments without sacrificing reliability. The CM2723 can be used alone or with other controllers in a system. Available in a 12V version and 24V version.
Availability:
Backordered
SKU 1093001ECD
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
VersionCM2723 24VDivisionElectronic Motion and Controls Division
Minimum Operating Temperature-40Maximum Operating Temperature85
Controller TypeMaster ControllerHousing MaterialPlastic
Electrical ConnectionAMP SupersealIndustryForestry
Output Current Rating2.5SoftwareC and SDK
Communication Interface2x CAN (J1939)Ingress Protection Rating69K
Number of Outputs23Specifications MetSee product brochure for full details
Version24Number of Inputs28
Power Supply Voltage24
