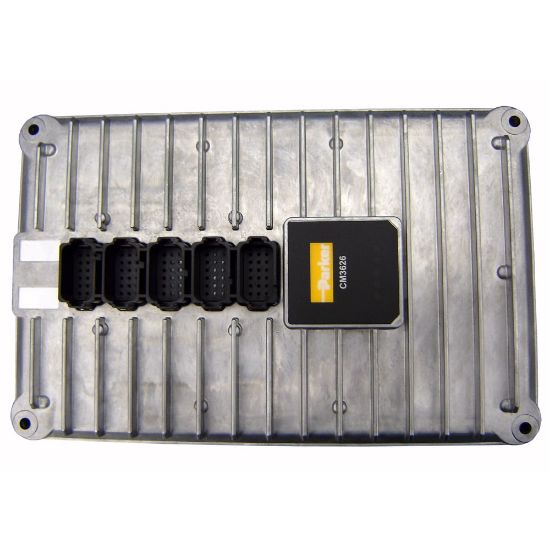

Picture of Semi-custom Controller Module - CM3626 - 0991001ECD

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Semi-custom Controller Module - CM3626 - 0991001ECD

Parker's CM3626 controller module is a rugged unit that is perfect for a large centrally located controller in a system. The CM3626 is programmed in C by customers to meet their needs. The unit communicates using J1939 protocol over a CAN bus connection.
Availability:
Backordered
SKU 0991001ECD
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Model NumberCM3626Housing MaterialAluminum
Output Current Rating5 A (2x)Communication Interface2x CAN (J1939)
Minimum Operating Temperature-40Controller TypeMaster Controller
Maximum Operating Temperature85Number of Outputs26
Ingress Protection Rating66Specifications Met2004/108/EC
Power Supply Voltage9 to 32DivisionElectronic Motion and Controls Division
SoftwareC and SDKNumber of Inputs36
Electrical ConnectionDeutsch DT16IndustryAgriculture
