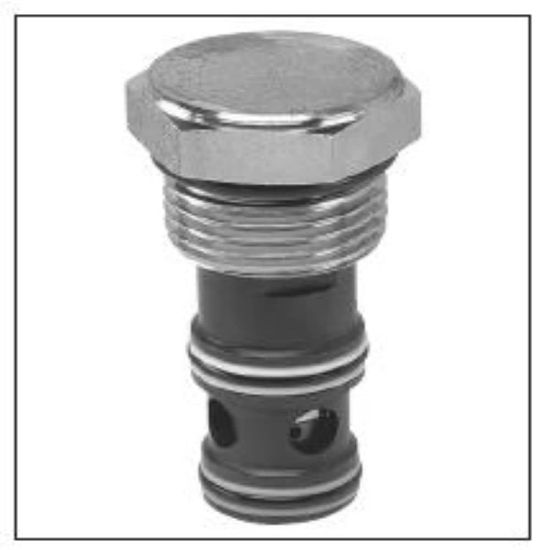

Single Pilot Operated, Pilot to Close Check Valves - CPC101P50

Name: Single Pilot Operated, Pilot to Close Check Valves - CPC101P50
SKU: CPC101P50

Pilot-to-close check valves operate as standard check valves, but block flow completely when a pilot signal is supplied; capable of flows up to 38 lpm (10 gpm) and pressures up to 240 bar (3,500 psi).

Availability:

Backordered

SKU CPC101P50

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Cracking Pressure	50 PSI, 3.5 BAR
Maximum Flow Rate	10 GAL/MIN, 38 L/MIN	Flow Rate	10
Seal Material	Nitrile	Actuation Type	Pilot Operated
Body Material	n/a	Minimum Operating Temperature	-30
Division	Hydraulic Valve Systems Division	For Fluid Type	Synthetic Hydraulic Fluids
Division	Hydraulic Systems Division	Valve Material	Steel (all parts)
Installation Torque	16	Filter Efficiency Rating	SAE Class 4
Maximum Operating Pressure	3500	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating	3500	Weight	0.31
Maximum Operating Temperature	250	Operating Temperature	-30 to 250
Cavity Size	C10-3	Maximum Flow Rate	10
Cracking Pressure	50	Function	Pilot to Close Check
Leak Rate	15 drops/min @ 3500 Psi (240 bar)	Flow Direction	1-2 Free Flow
Pilot Location	3	Pilot Pressure Ratio	2:1
