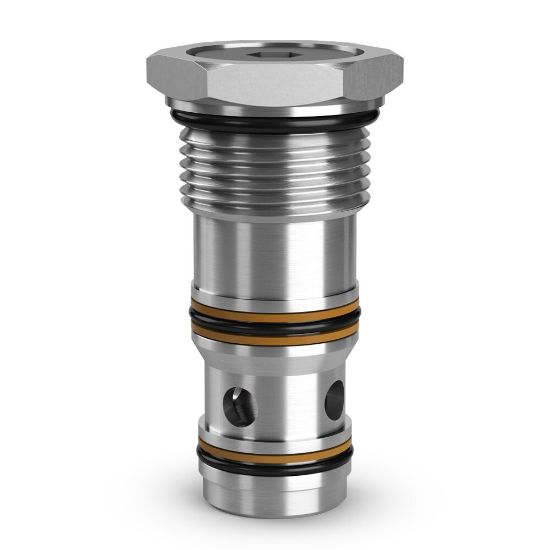

Single Pilot Operated, Pilot to Open Check Valves - D3B125V

Parker’s P.O. check valve assemblies allow flow up to 150 lpm (40 gpm) with pressures up to 420 bar (6,000 psi). Return flow can be enable by an external pilot supply, which shifts the internal poppet into an open position.
Availability:
Backordered
SKU D3B125V
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialFluorocarbonMaximum Flow Rate40 GAL/MIN, 150 L/MIN
Cracking Pressure30 PSI, 2 BARWeight0.53
Pilot Pressure Ratio4:1DivisionHydraulic Valve Systems Division
Minimum Operating Temperature-15Actuation TypePilot Operated
Seal MaterialFluorocarbonMaximum Flow Rate40
Valve MaterialSteel (all parts)Leak Rate3 drops/min @ 6000 Psi (420 bar)
Cavity Size3CFor Fluid TypeMineral-based Hydraulic Fluids
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Maximum Operating Pressure6000
Maximum Inlet Pressure Rating6000Body Materialn/a
FunctionSingle Pilot to Open CheckFlow Direction2-1 Free Flow
Filter Efficiency RatingISO 4406 18/16/13Installation Torque63
Pilot Location3Flow Rate21 gal/min @ 100 Psi (7 bar) Nominal
Operating Temperature-15 to 400DivisionMobile Hydraulic Systems Division Europe
Maximum Operating Temperature400Cracking Pressure30
