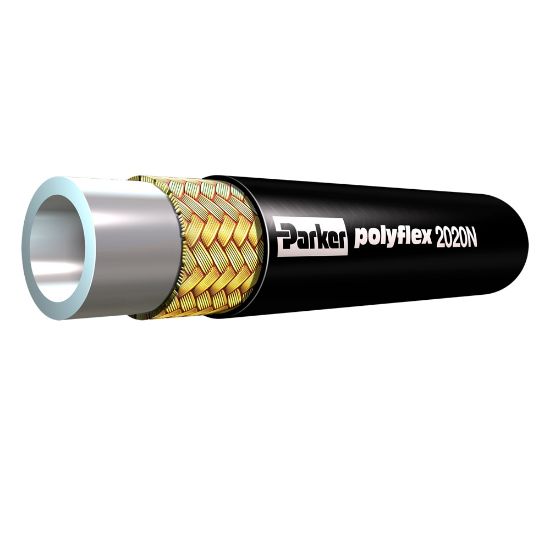

Picture of Small Bore High Pressure Mini Hydraulic Hose – 2020N - 2020N-012R30

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Small Bore High Pressure Mini Hydraulic Hose – 2020N - 2020N-012R30

Parker high pressure mini hydraulic hoses feature a compact hose O.D. for use in mini-hydraulic applications under 7,000 psi.
Availability:
Backordered
SKU 2020N-012R30
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (size)-012DivisionParflex Division
MediaAirMinimum Operating Temperature-40
Specifications MetN/ACover MaterialPolyurethane
Hose Inner Tube MaterialPolyamide (PA)Maximum Operating Temperature180
ApplicationOil & GasMaximum Operating Pressure6890
Weight0.01Inside Diameter5/64
Outside Diameter0.200Compatible FittingEX Series
Minimum Bend Radius0.790Hose Reinforcement Material1 Braid of High Tensile Synthetic Fiber
Size-012Design Factor2.5:1
