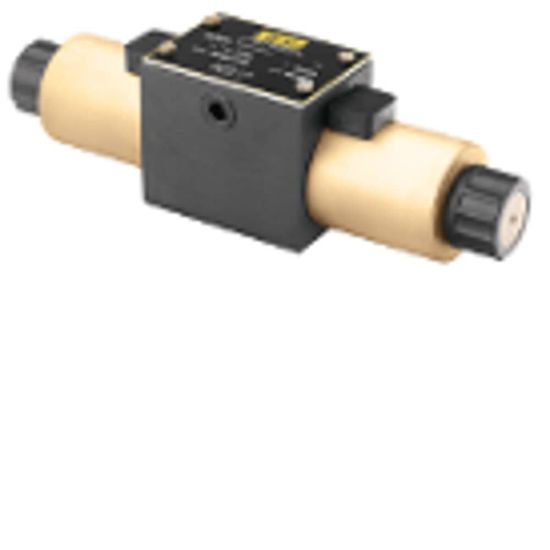

Picture of Solenoid Operated Directional Control Valve - D3DW Series - D3DW11CNYWZ

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Solenoid Operated Directional Control Valve - D3DW Series - D3DW11CNYWZ

Parker’s D3DW directional control valves are high performance, 5-chamber, direct operated, wet armature, solenoid controlled, 3 or 4-way valves.
Availability:
Backordered
SKU D3DW11CNYWZ
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Operating Temperature140Weight16
Connection TypeDIN w/o PlugCoil Specifications MetOmit to Standard Valve
SizeNFPA D05Spool Code4-Way
Additional OptionsConsult catalog for additional features.Body MaterialGray Iron
Mounting TypeSubplateSpool PositionDouble Solenoid
Actuation TypeHydraulic PressureValve Type5-Chamber Body Solenoid Operated Directional Control Valve
Seal MaterialNitrilePower Supply Voltage120/60 - 110/50 VAC
Maximum Operating Pressure5000Maximum Flow Rate33
DivisionHydraulic Valve Systems DivisionMinimum Operating Temperature-4
