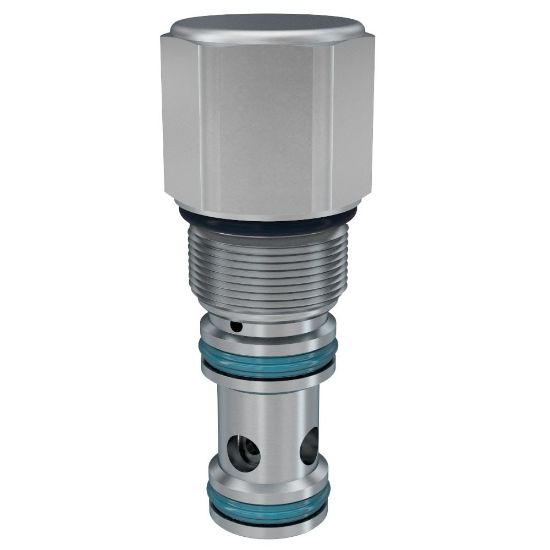

Spool Type Logic Element - LE103A01

Name: Spool Type Logic Element - LE103A01
SKU: LE103A01

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

Backordered

SKU LE103A01

POR

Qty:

Products specifications

Attribute name	Attribute value
Configuration	Normally Open	Switching Pressure	25 PSI, 1.7 BAR
Flow Direction	Side to Nose (2-1)	Maximum Flow Rate	15 GAL/MIN, 57 L/MIN
Dampening Orifice Included	No	Seal Material	D-Ring (Standard)
Body Material	n/a	Maximum Operating Pressure	345 bar
Function	Logic Valve	Division	Hydraulic Cartridge Systems Division
Vented	External	Weight	0.3 lb
Division	Hydraulic Systems Division	Cavity Size	C10-3S
Actuation Type	Vent to Close	Flow Direction	Side to Nose (2-1)
Operation Type	Pilot Operated	Pilot Location	Internal
Maximum Flow Rate	15 Gal/min	Switching Pressure	1.7 bar
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-37 °C
Dampening Orifice Included	No	Maximum Operating Temperature	+200 °F
Maximum Inlet Pressure Rating	5000 psi	Seal Material	D-Ring (Standard)
Configuration	Normally Open	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-35 to +200 °F	Flow Rate	N/A L/min
Leak Rate	82 @ 3000 PSI (207 BAR) cm3/min	Installation Torque	22-27 Nm
